T-H Marine Plumbing & Drains-Overflow Drain Tubes - Push-In

T-H Marine Plumbing & Drains-Overflow Drain Tubes – Push-In

Name: T-H Marine Plumbing &amp; Drains-Overflow Drain Tubes - Push-In
Brand: T-H Marine
SKU: 22465
Availability: InStock

$13.60

T-H Marine’s overflow drain tubes are the industry leader for livewell plumbing, combining functionality with convenienc…

Categories: Marine, Plumbing & Drains Tag: T-H Marine Brand: T-H Marine

Description
Reviews (0)

T-H Marine’s overflow drain tubes are the industry leader for livewell plumbing, combining functionality with convenience. They simplify the draining process, eliminating the need to reach into water.

Made from marine grade PVC for durability and long-lasting performance.
Features an effective sealing design that makes draining easier than using a plug.
Available in various sizes and custom lengths tailored for different livewell capacities.

Features

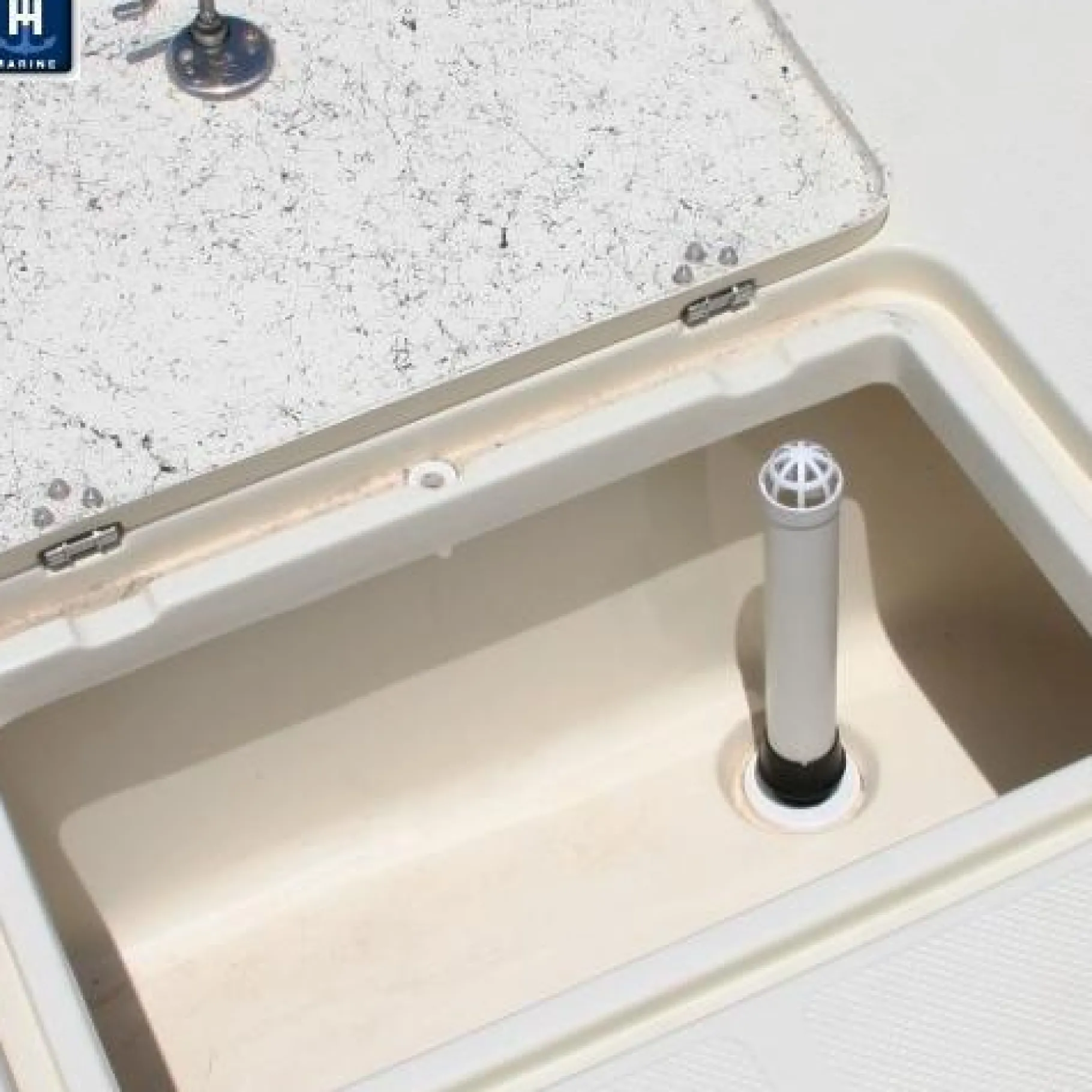

#1 CHOICE FOR LIVEWELL DRAIN TUBES IN THE INDUSTRY. T-H Marine pioneered the use of the overflow drain tube for boat livewells. The original overflow drain tubes are still the best in the industry. Our tubes provide a very functional way to plumb a livewell. Using our overflow tubes means you only need one hole in the livewell and one fitting to serve as both the overflow and the drain. Instead of reaching into the water and getting wet to pull a drain plug, you simply pull the tube out from the top and draining begins.

Performs as a functional and economical overflow drain tube

Made of all marine grade PVC construction for long life

Sure sealing of livewell / baitwell drain

Makes draining livewell / baitwell easier than a plug

Tubes available for multiple size fittings to cover every size of livewell drain

Custom lengths of tube available for boat builders to fit your livewell capacity

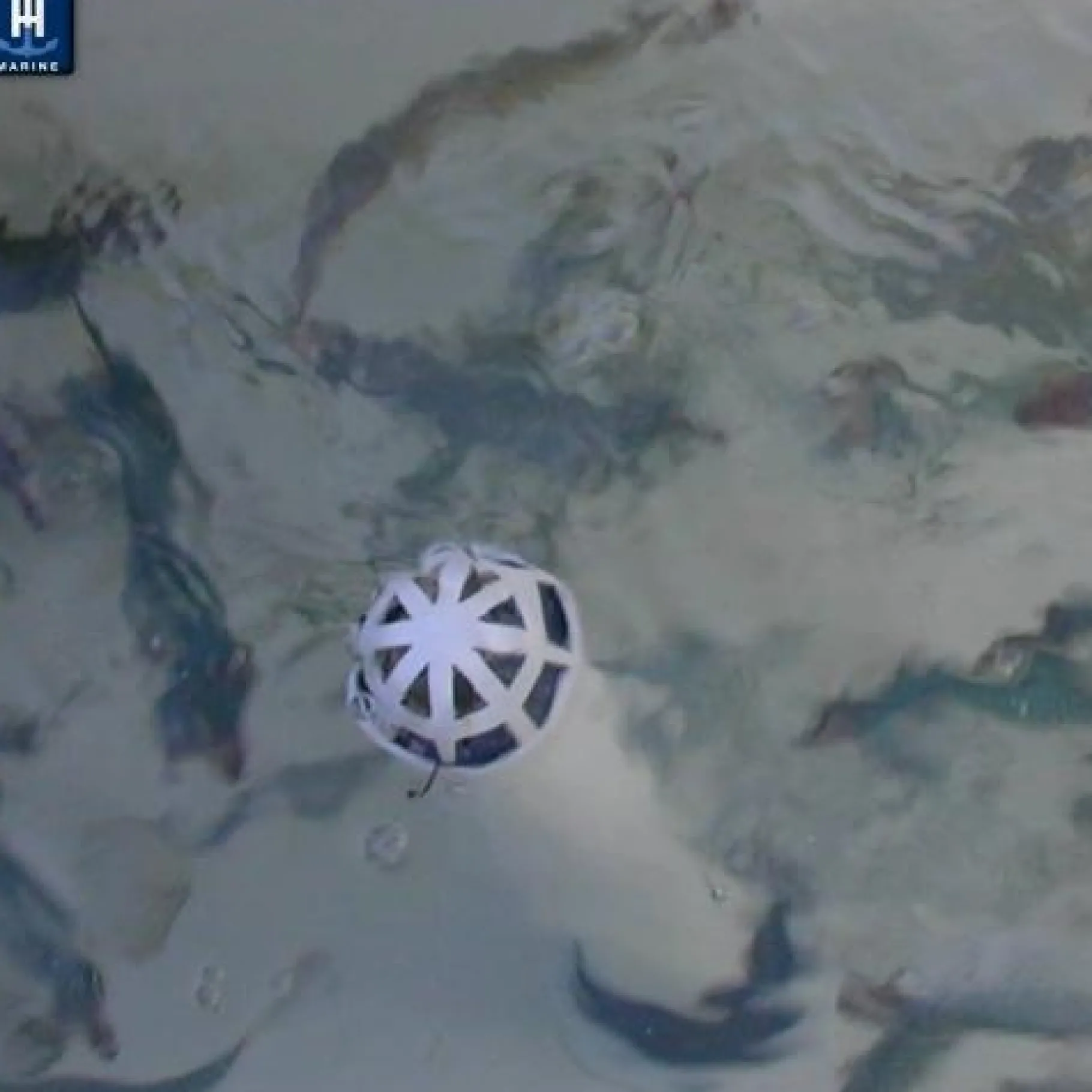

Aftermarket versions come with screen loose, so they can be cut to best length

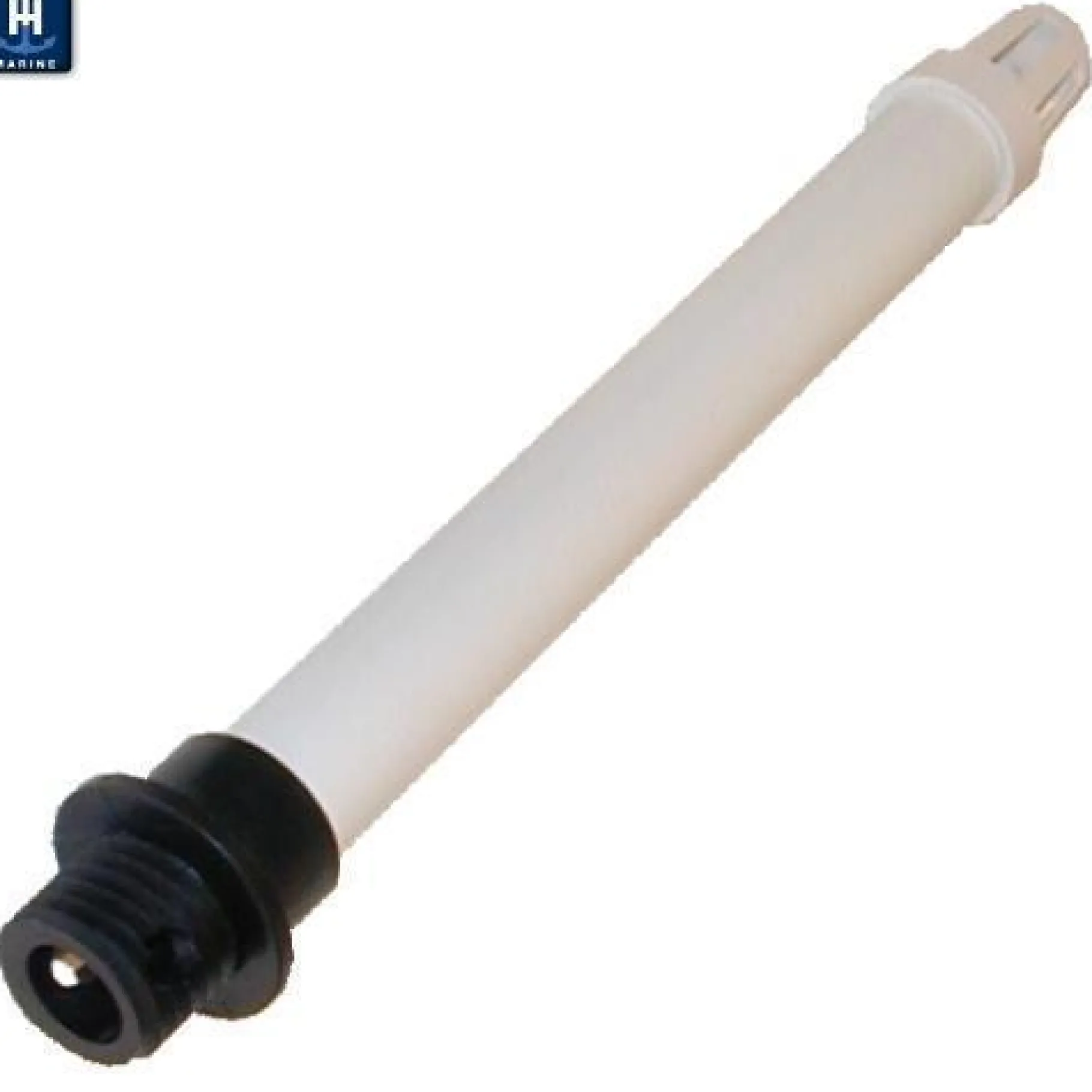

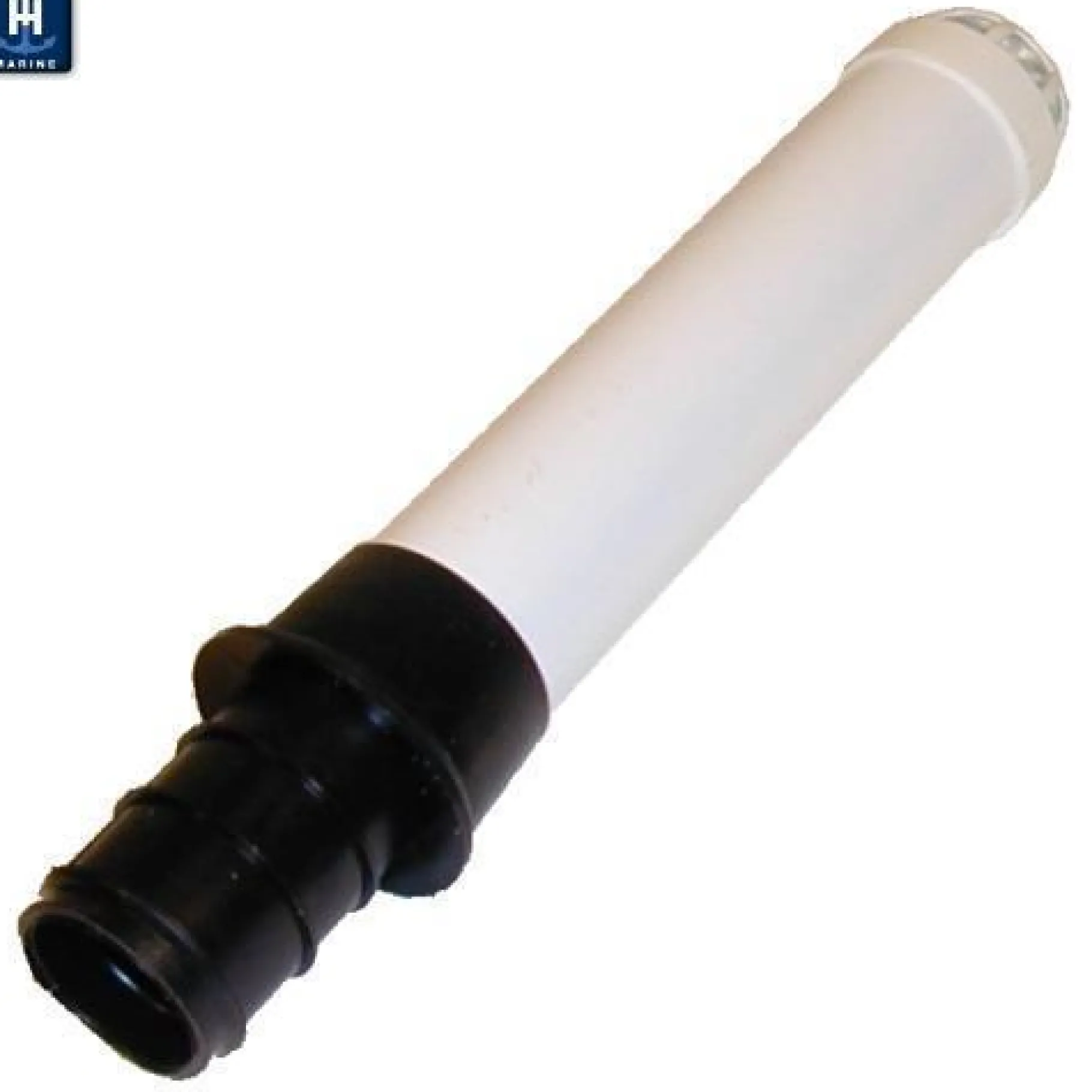

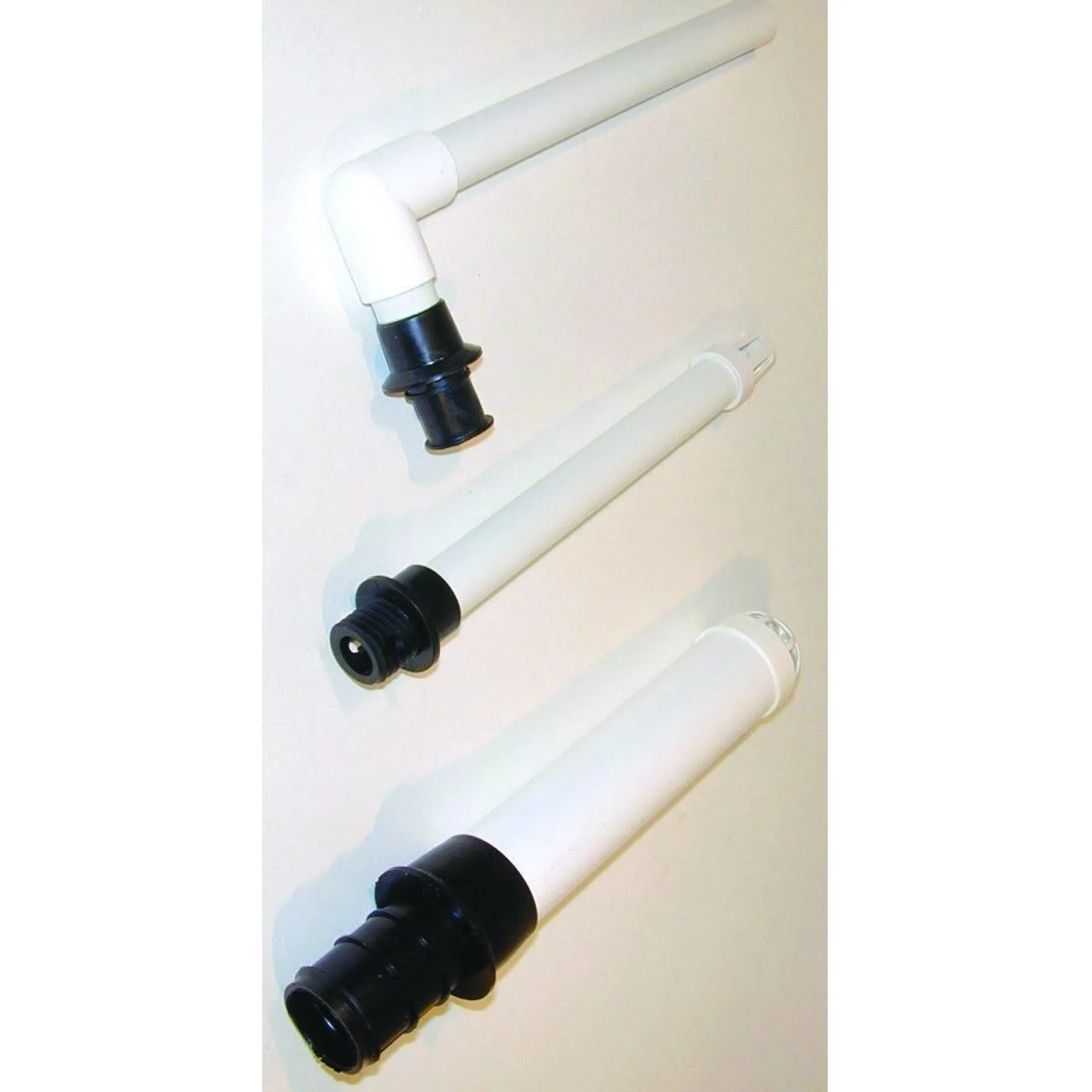

Straight tubes are designed for draining through floor

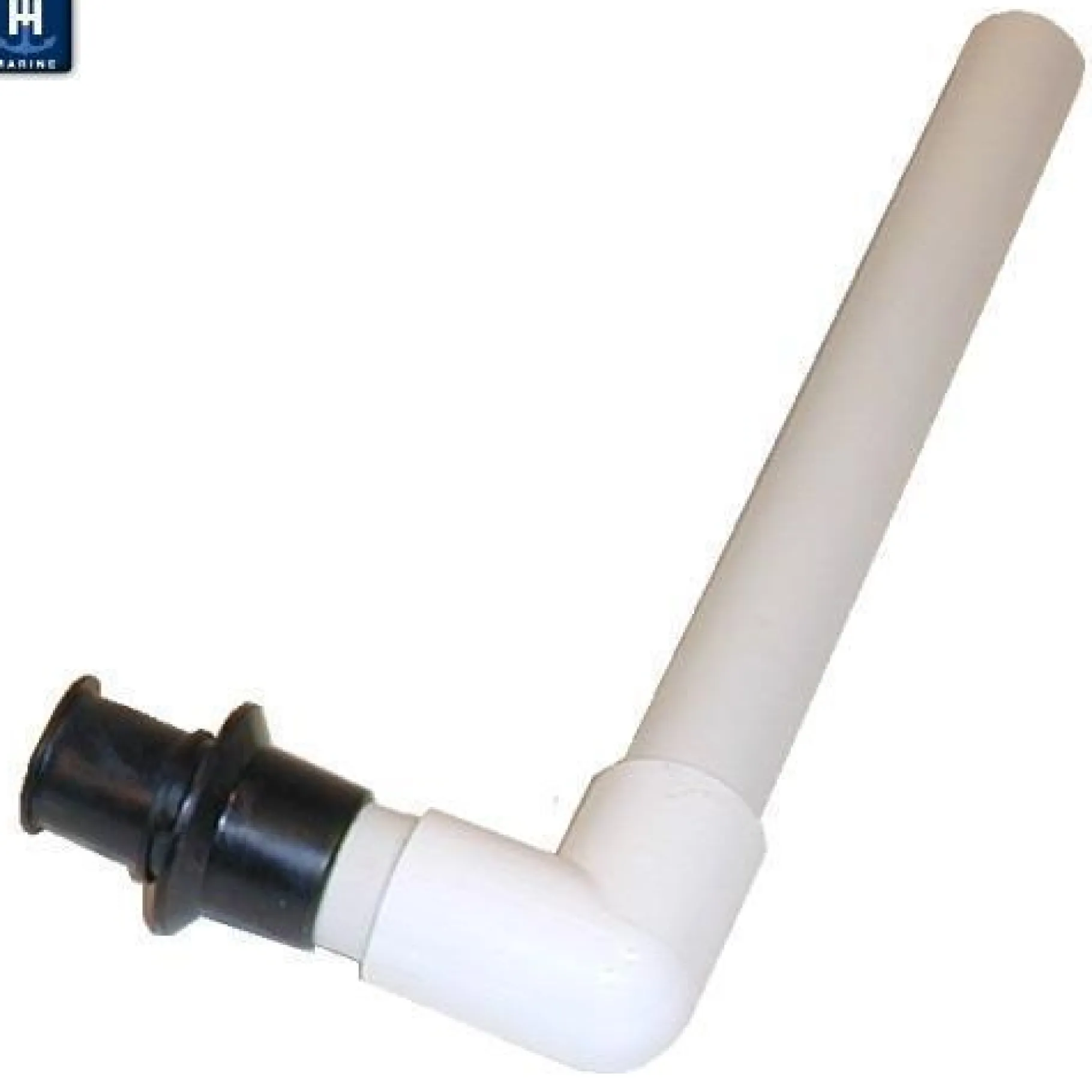

90 degree tubes are designed for draining through side wall

These overflow drain tubes feature a tough, flexible vinyl plastic end with a standpipe of white PVC tubing. To use, simply insert vinyl end into the opening of thru-hull fitting. To drain livewell or baitwell, simply remove. This unique drain tube seals much better than any other overflow on the market and removal is much easier.

NOTE: Any tube can be cut to custom length for boat manufacturers**. Outside diameter of 1 1/2″ overflow drain tube boot and tube is 1 5/8″, outside diameter of 1 1/8″ overflow drain tube boot and tube is 15/16″. Specify the desired length by adding it at the end of any part number. For example, to request an 8″ length of the ODT-1, the correct part number is ODT-1-8. **THIS IS NOT AVAILABLE FOR ONLINE ORDERS.

OEM/Bulk	Description	Distributor Packaged
ODT-190-DP	Fits All T-H Marine 1-1/8″ Thru Hulls – 90° – 12″L	ODT-190-DP

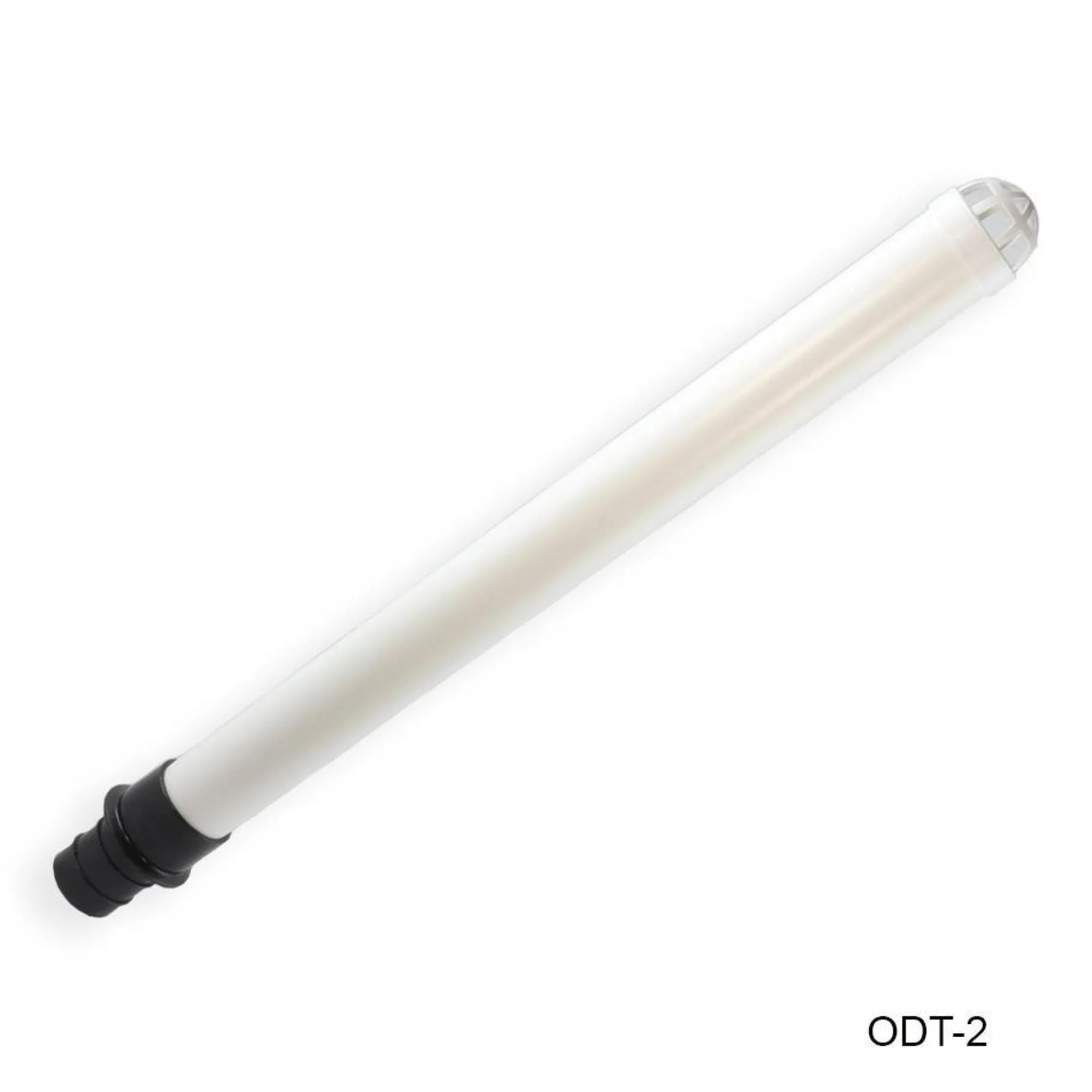

ODT-2-DP	Fits All T-H Marine 1-1/2″ Thru Hulls – Straight – 18″L with screen	ODT-2-DP

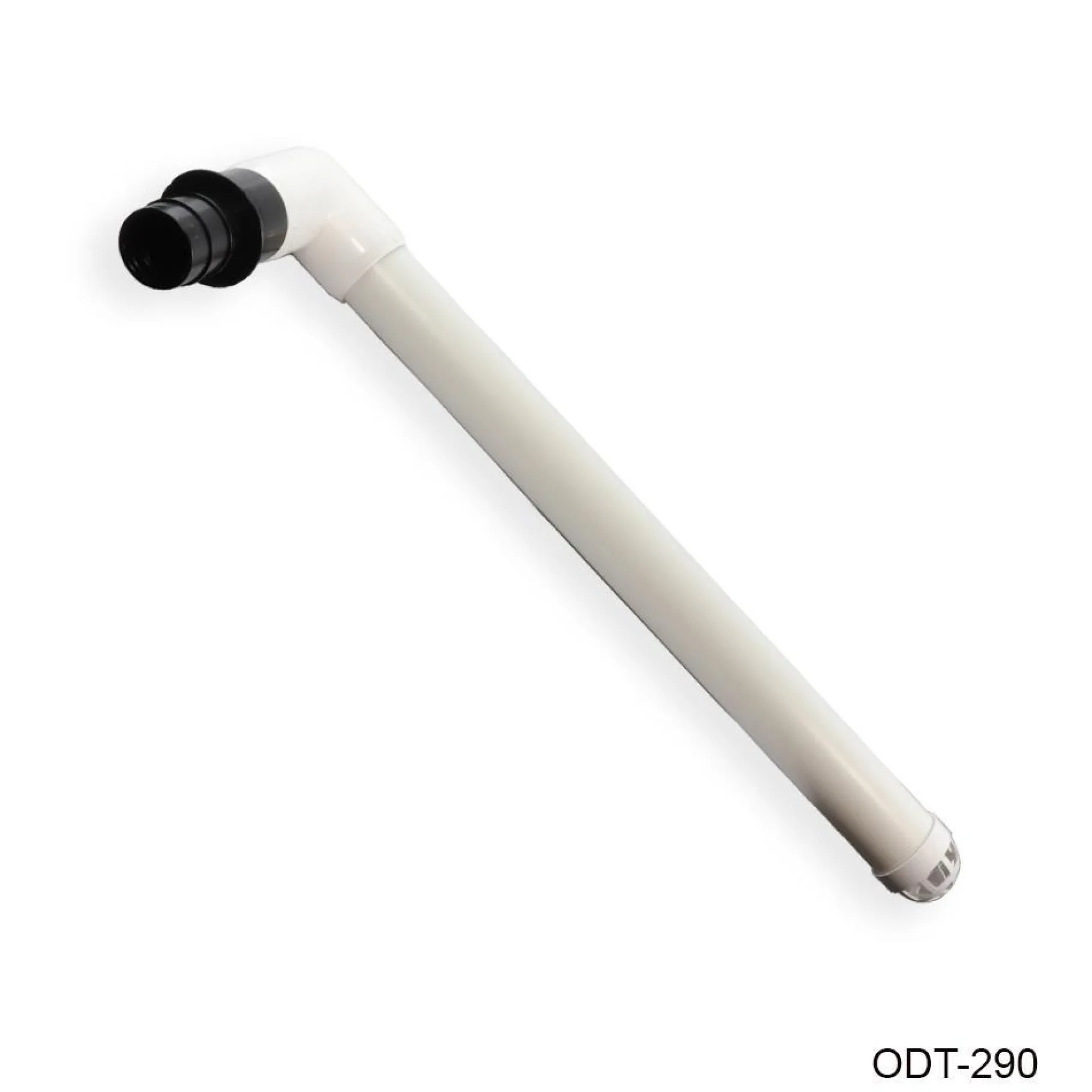

ODT-290-DP	Fits All T-H Marine 1-1/2″ Thru Hulls – 90° – 18″L with screen	ODT-290-DP

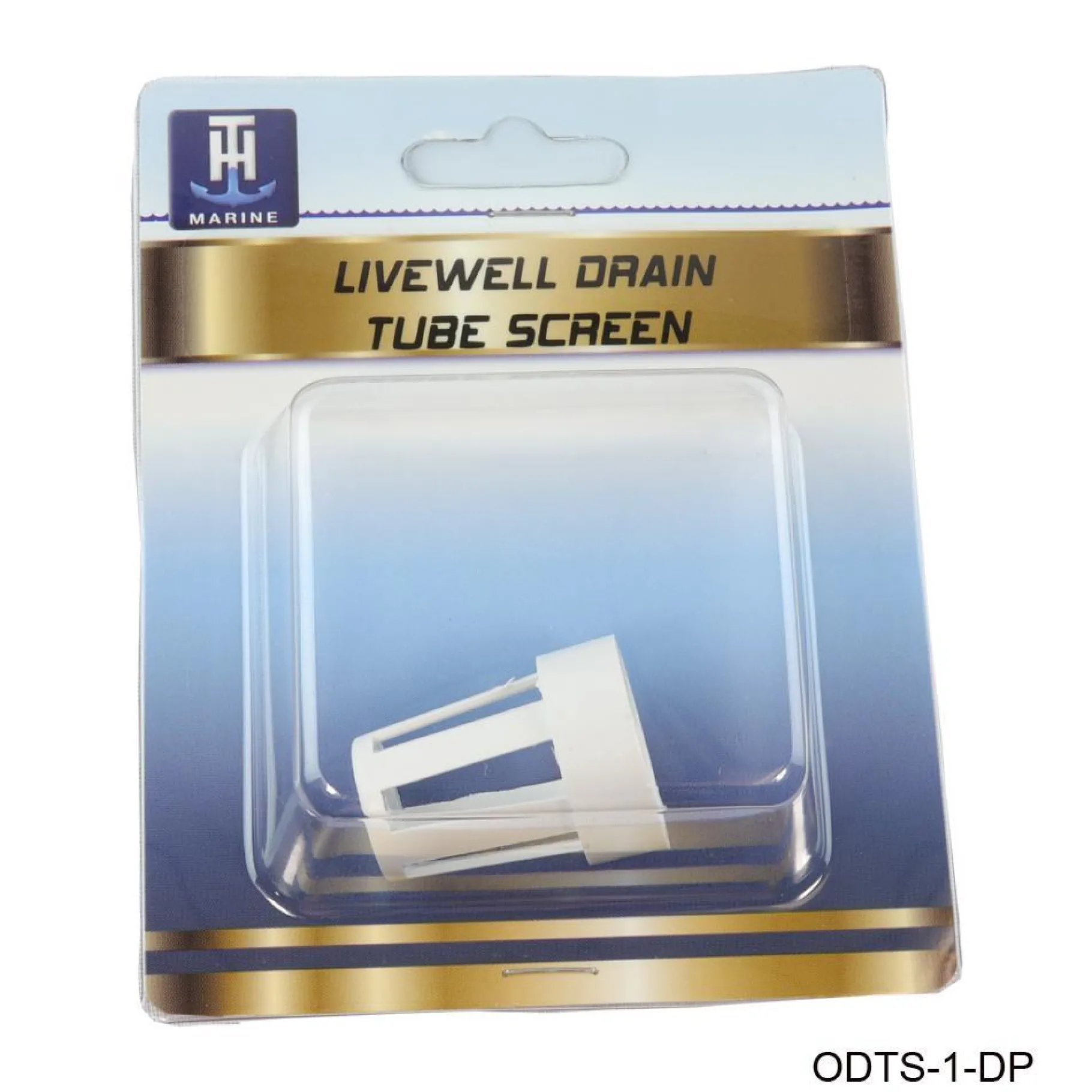

ODTS-1-DP	Filter Screen for ODT-1 & ODT-190	ODTS-1-DP

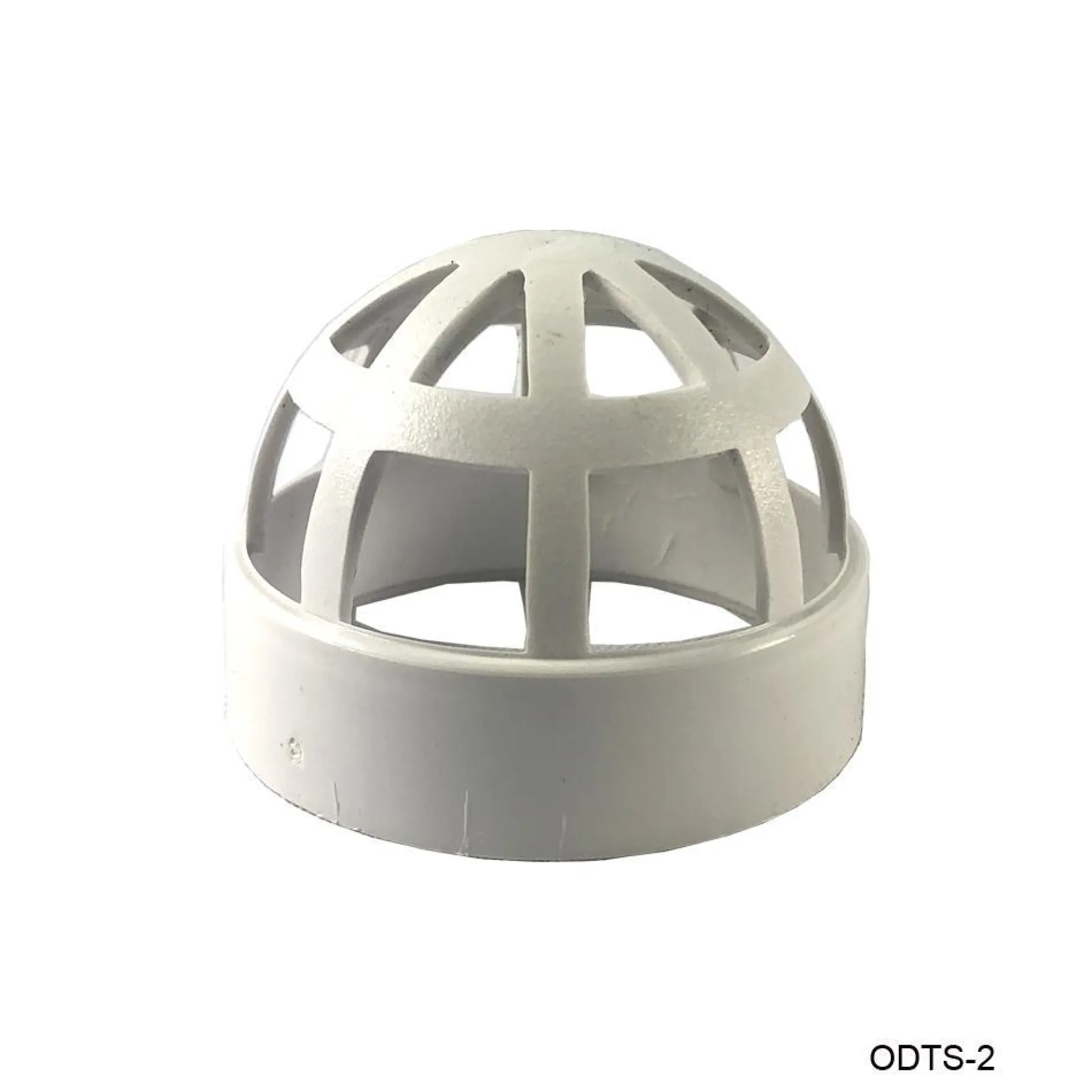

ODTS-2-DP	Filter Screen for ODT-2 & ODT-290	ODTS-2-DP
ODT-1KIT-DP	Kit – 12″ Straight Tube, 90 Degree Fitting, Filter Screen	ODT-1KIT-DP

Specs

Overflow drain tube and boot for 1-1/2″ is 1-5/8″
Overflow drain tube and boot for 1-1/8″ is 15/16″
