T-H Marine Jack Plates & Trim Units-Mini Jacker Outboard Jack Plate – Outboard Motor Bracket
$176.00
The Clamp Style Small Outboard Jack Plate is an ideal solution for mounting outboard motors up to 35 HP on shorter trans…
The Clamp Style Small Outboard Jack Plate is an ideal solution for mounting outboard motors up to 35 HP on shorter transom boats. Designed with a robust cast aluminum construction, it features a 4″ setback and is perfect for skiffs, aluminum boats, and inflatables.
- Suitable for outboard motors up to 35 HP with a weight limit of 150 lbs.
- Offers a 4″ transom setback and a 3″ vertical offset for improved motor mounting.

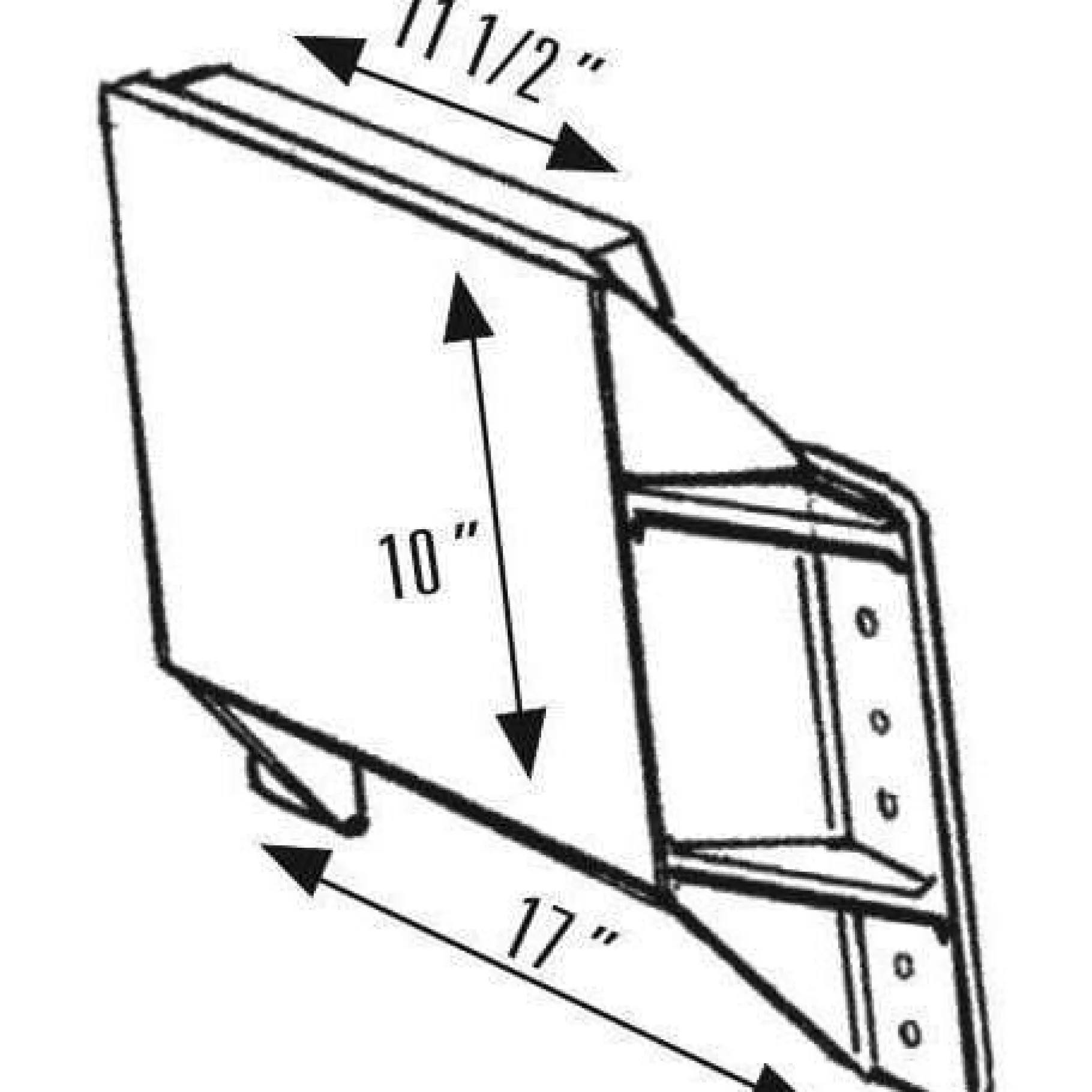

- Engine mounting surface dimensions are 11.5″ wide by 10″ high with 17″ overall flange width.
Features
- “Clamp Style” Small Outboard Jack Plate

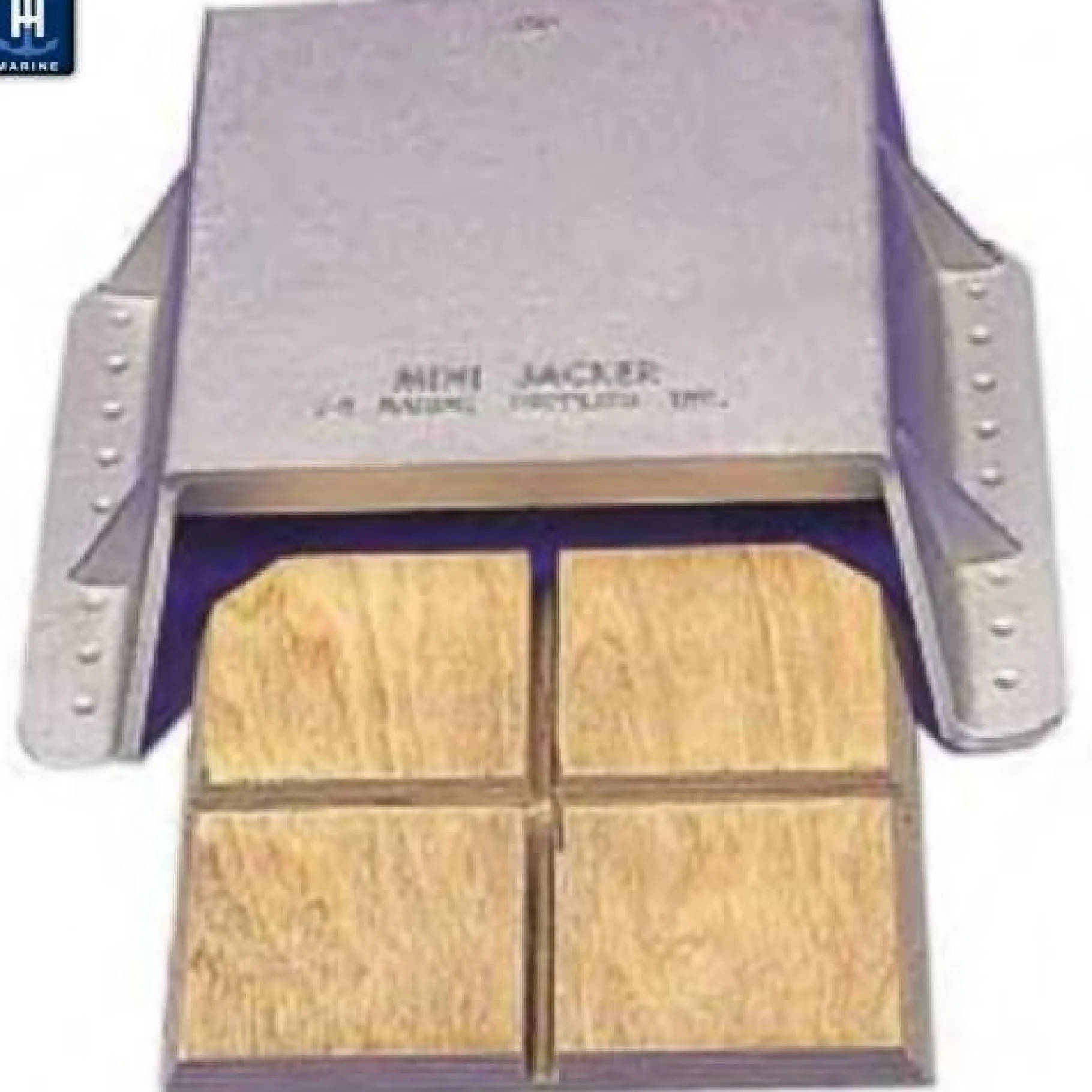

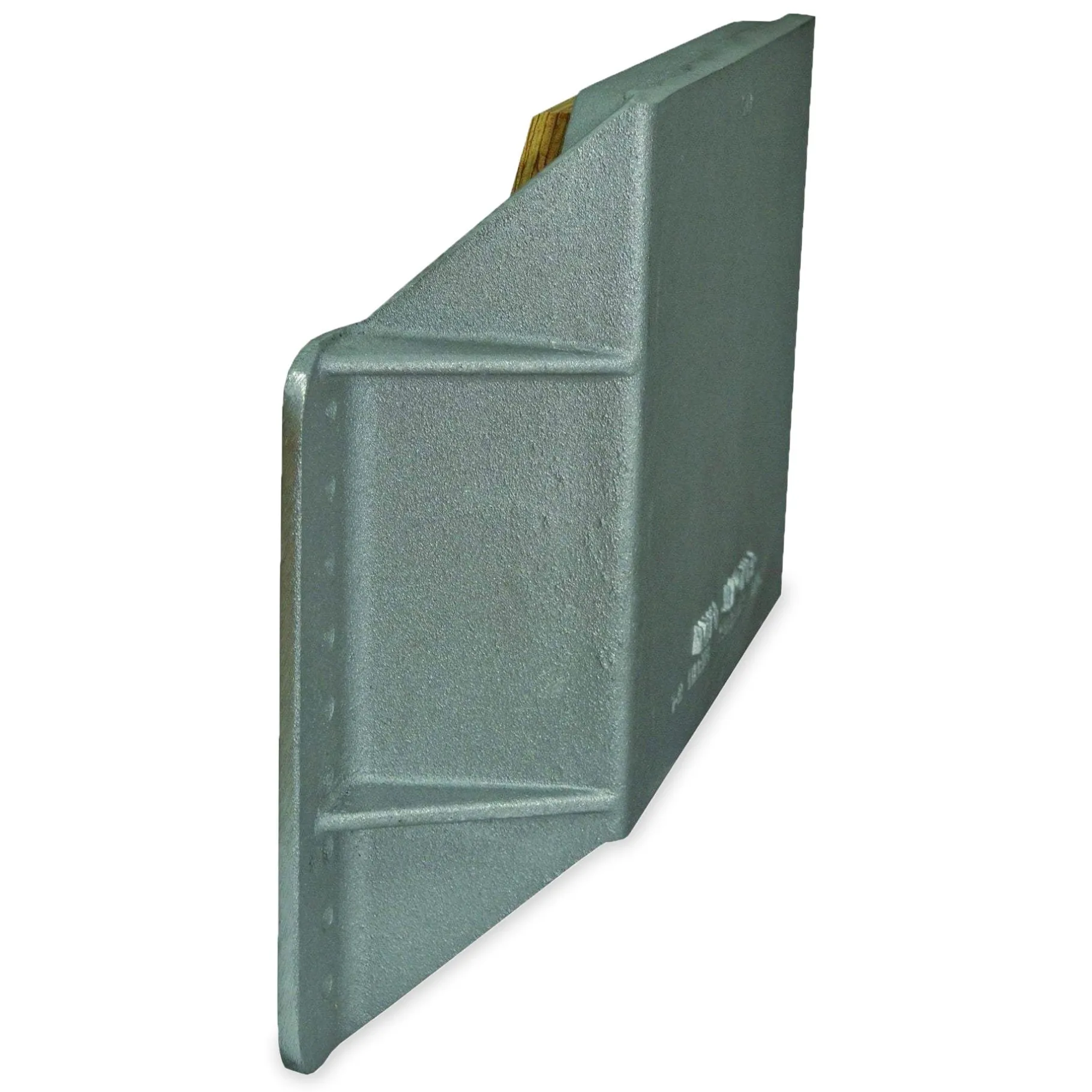

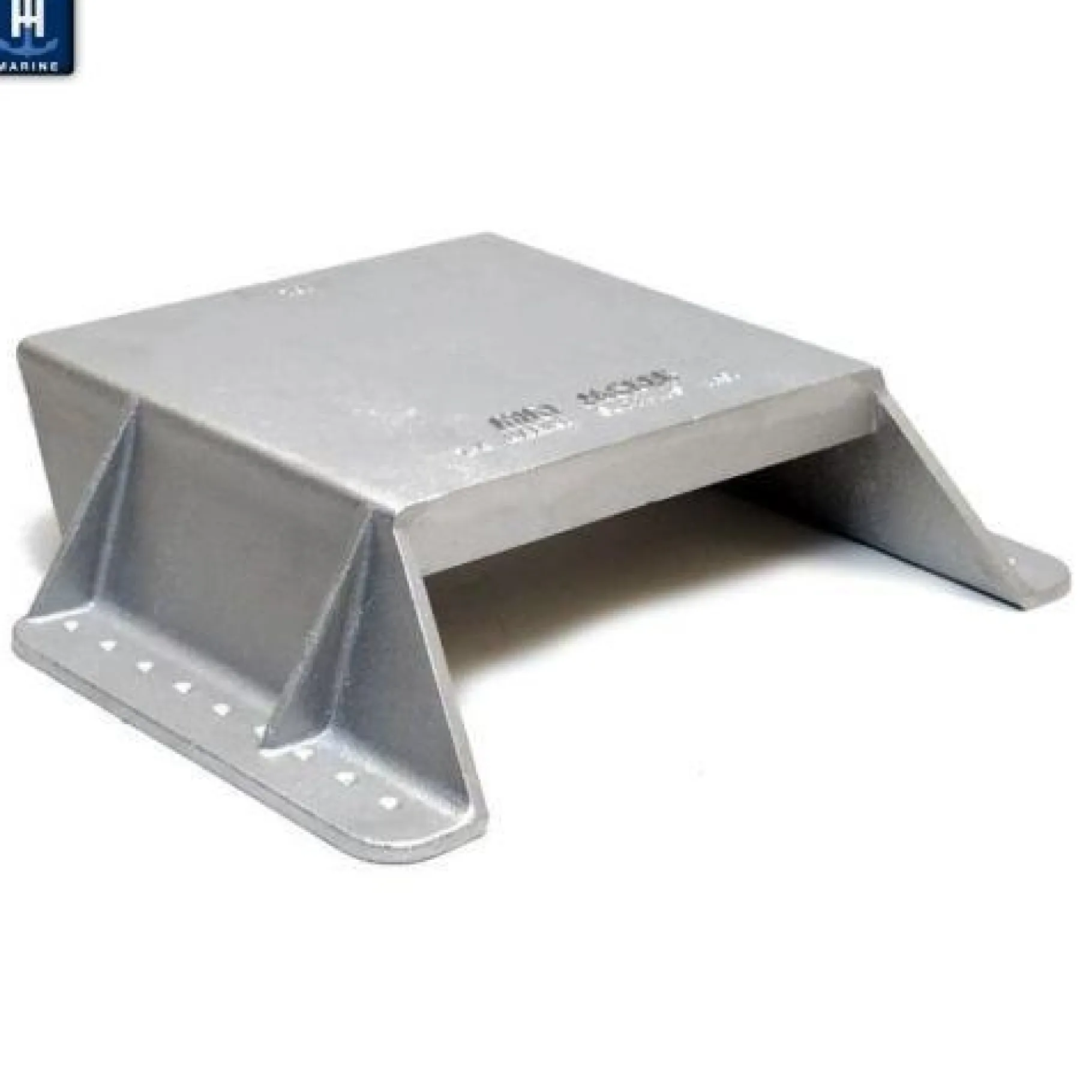

- Cast Aluminum Bracket
- Marine Grade Transom Block

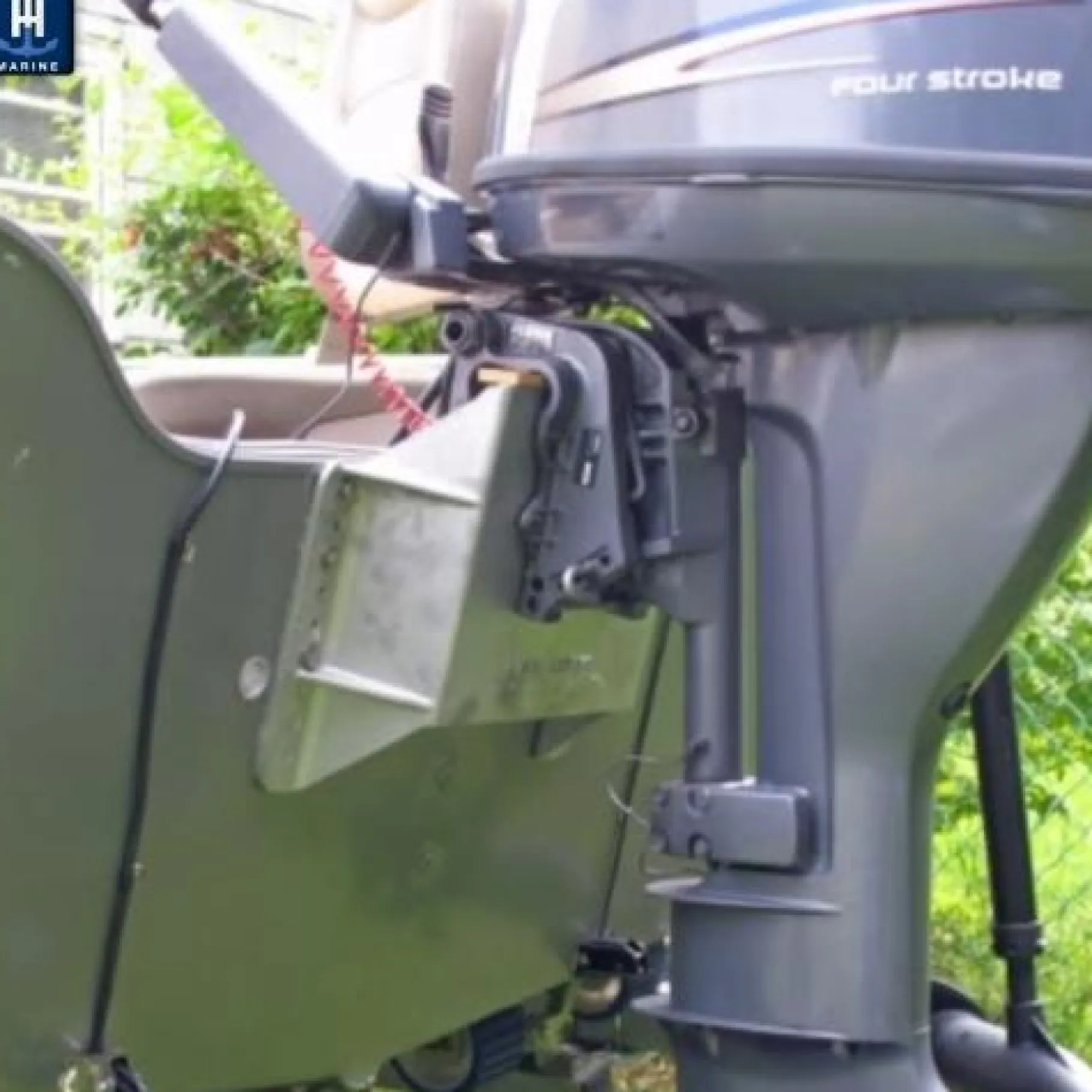

This cast aluminum offset type jack plate is designed for clamp-on mount outboard motors up to 35 HP. The Mini Jacker™ allows mounting of long shaft motors to shorter shaft transom boats. The mini-jacker™ stands off transom 4″. The engine mounting surface is 11 1/2″ wide x 10″ high and features a vertical offset of 3″. The overall width of transom mounting flanges is 17″.

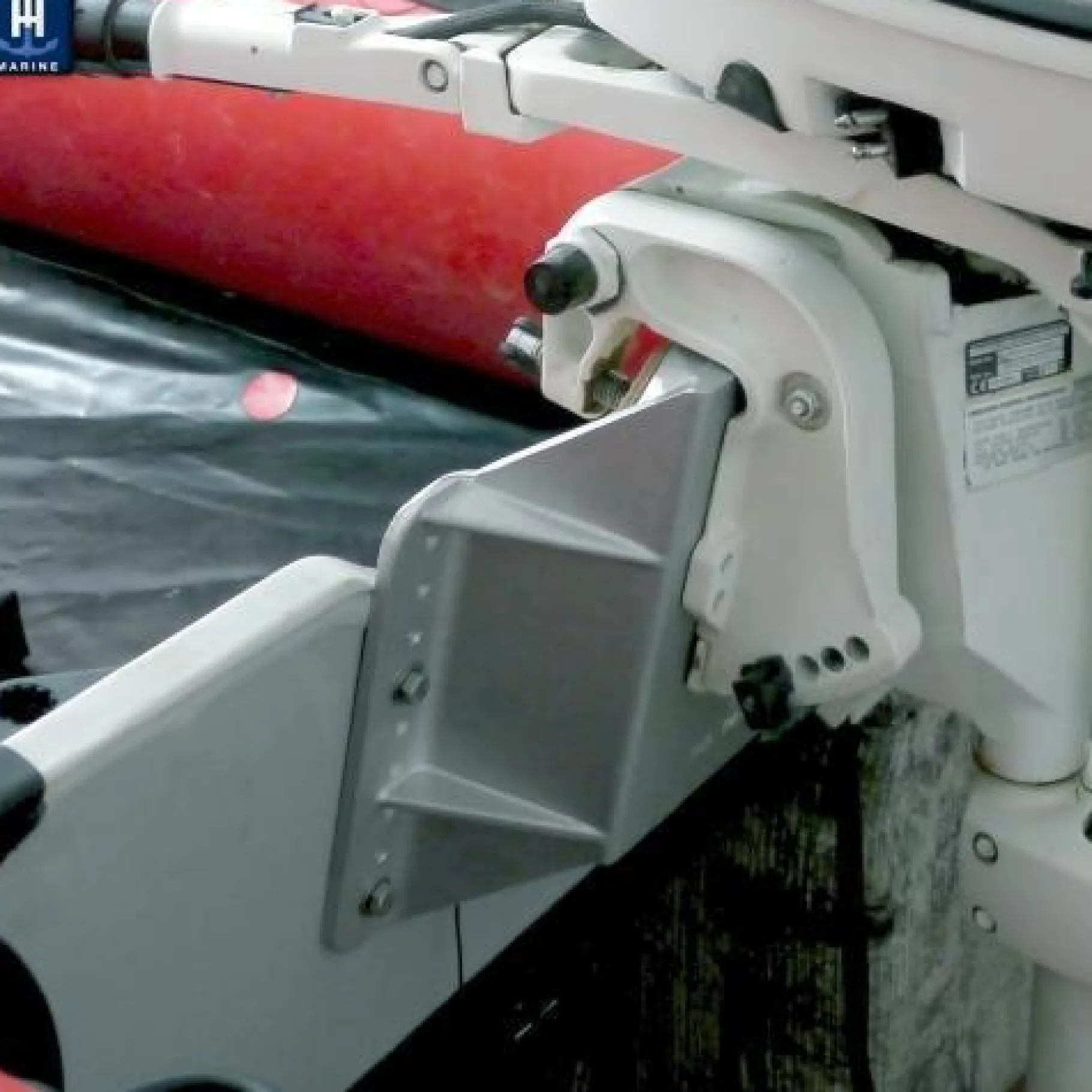

Super for skiffs, aluminum boats, and inflatables.
| SKU | Product Name | Packaged |
|---|---|---|

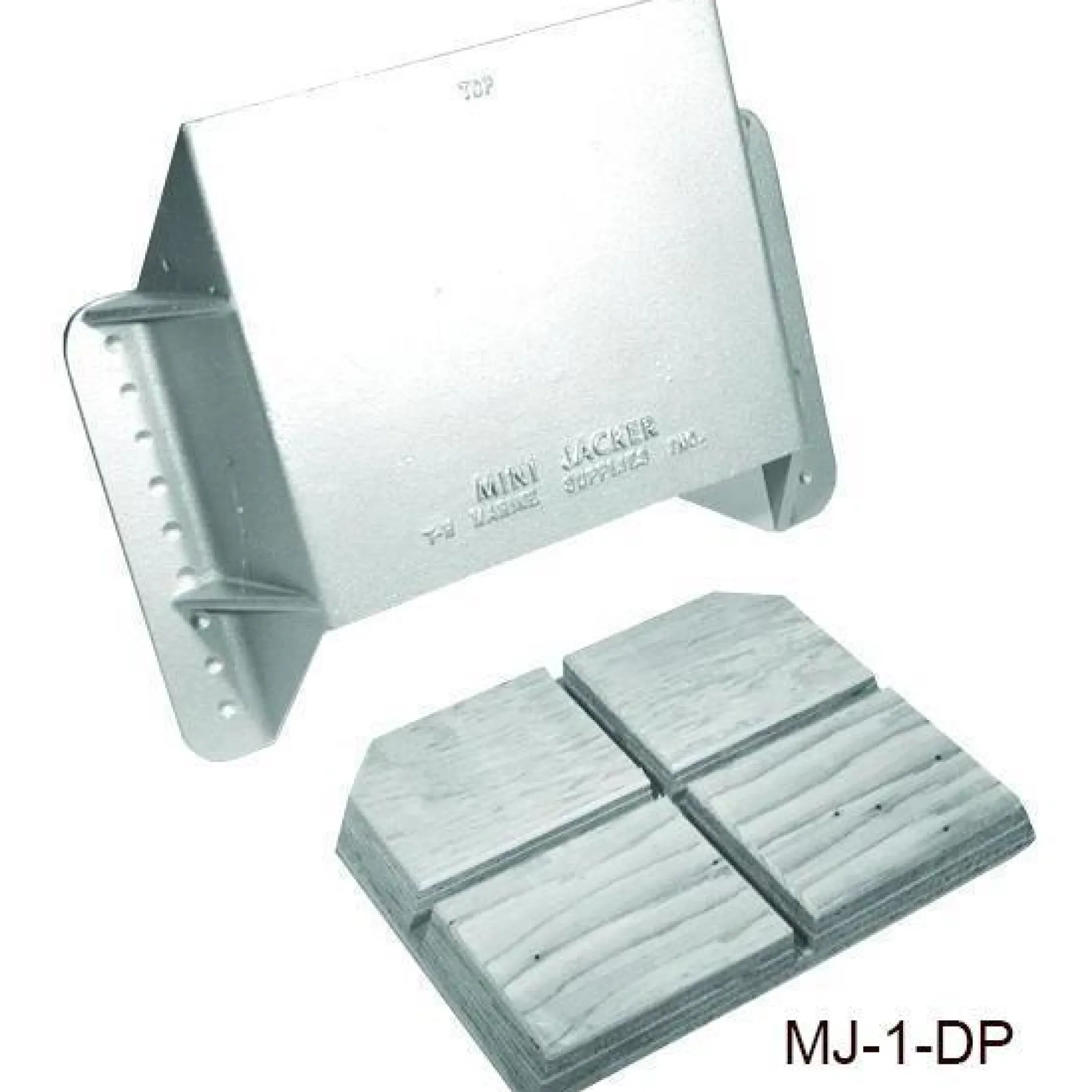

| MJ-1-DP | MINI JACKER™ – For Outboards Only | MJ-1-DP |
Packaging: individually boxed – open quantity
Specs
- 4″ Setback
- 3″ Vertical Offset
- Max Weight: 150lbs
- Max Horsepower: 35 HP
- Width: 11 1/2″
- Height: 10″
- Overall Mounting Flange Width 17″
