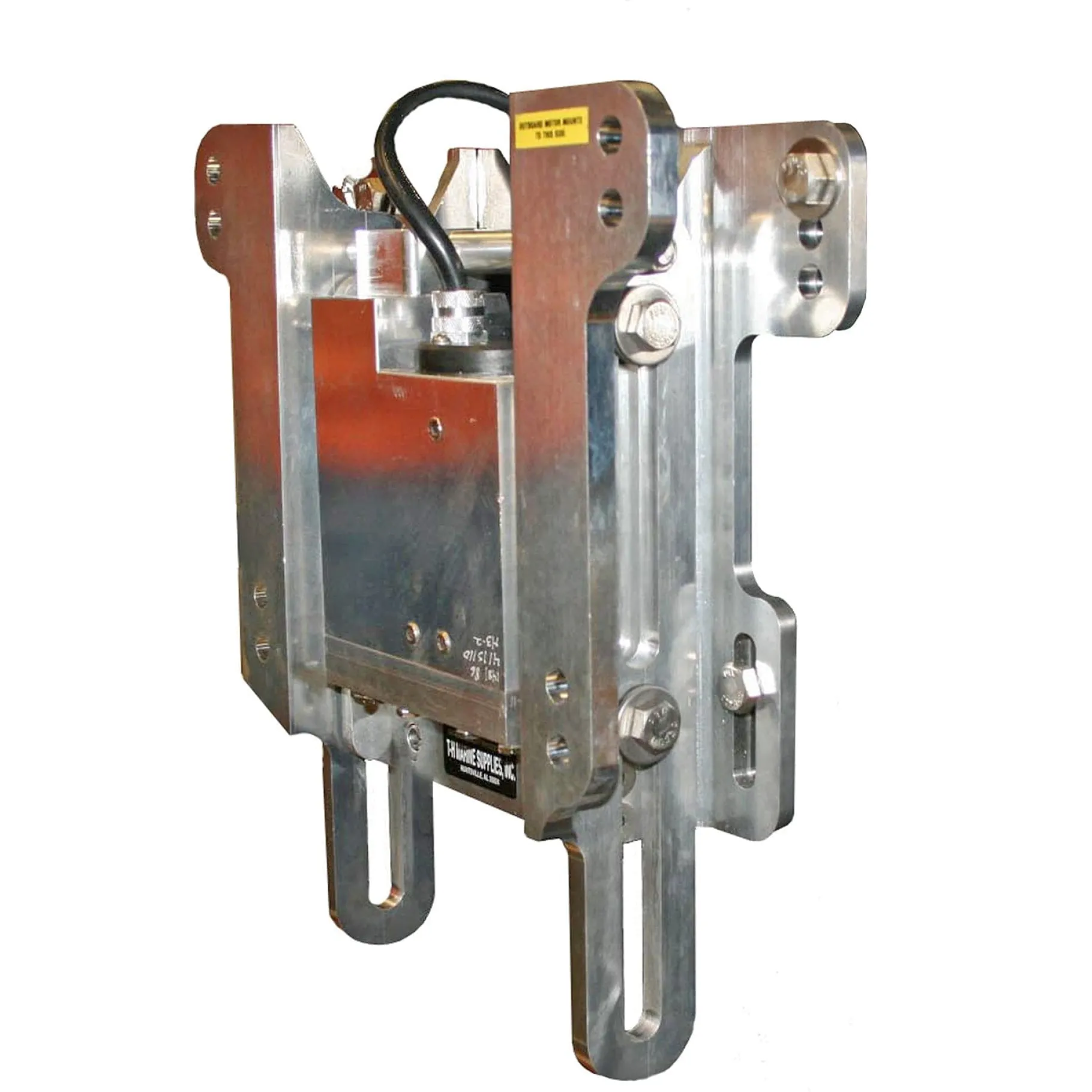

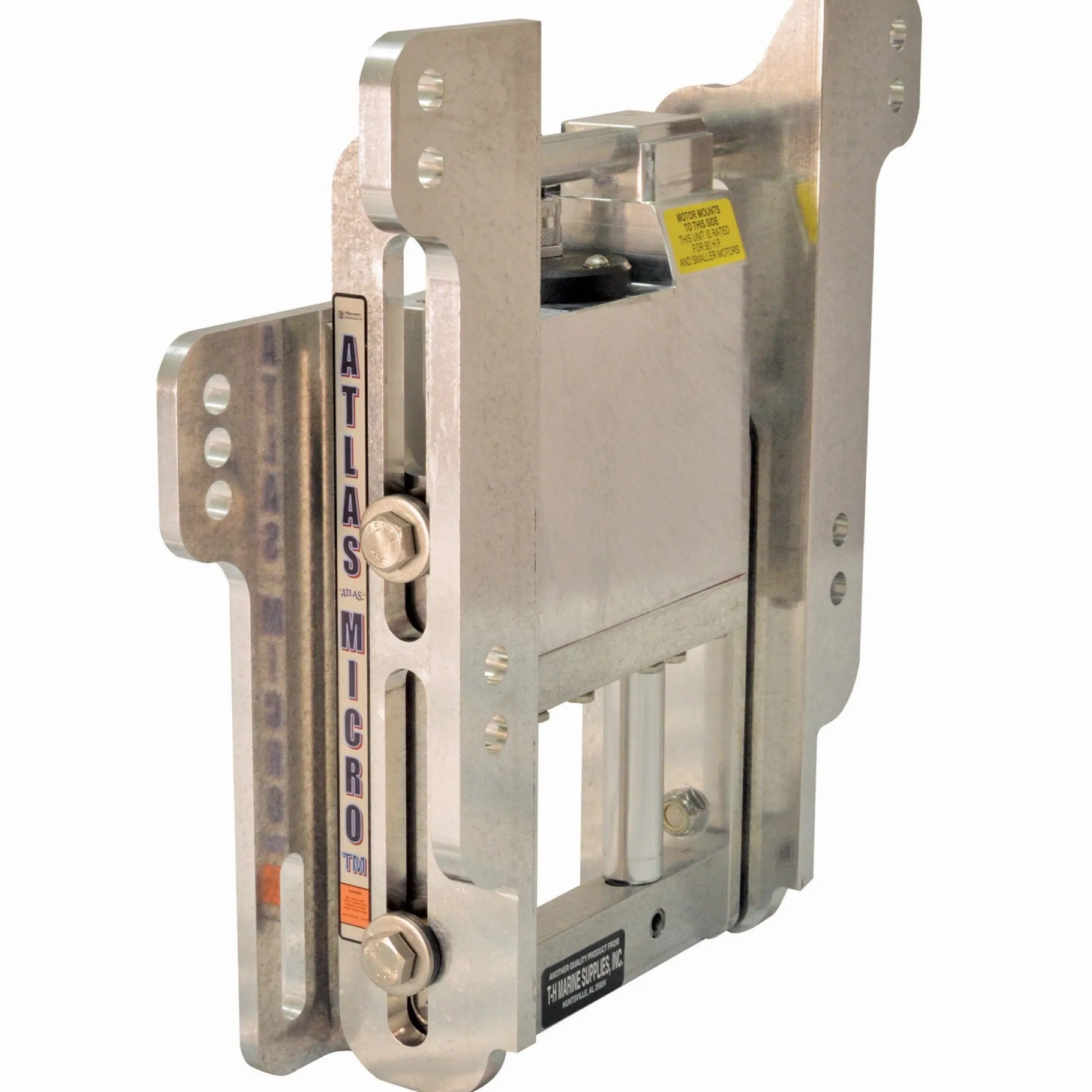

T-H Marine Jack Plates & Trim Units-ATLAS™ Micro Jacker Small Outboard Hydraulic Jack

Features

• For Small Outboards – Max Weight 425 lbs / Max Horsepower 115 HP
• Great For Shallow Water Boats – Gheenoes, River Runners, Jon Boats, Skiffs
• Get Out of Trouble Fast – lifts in 8 Seconds
• Lightweight – only 23 Pounds Fish “Skinny Water” With Confidence
• Self Contained Hydraulics
• Small Footprint – Only 14-5/8″ Wide and 11-1/2″ High
• Clamp-On Motor Adapter (part # AHJM-CMA-DP) allows you to mount smaller engines with clamp-on brackets to the ATLAS Micro Jacker, since they do not mount with bolts on the standard BIA engine hole pattern
• Contact your boat manufacturer or local dealer for setback recommendation for your particular boat and also the affects adding a jack plate can have on your boat

Note: Gauge not available for Atlas Micro Jacker. Atlas Micro Jacker does not come with the clamp on motor adapter (AHJM-CMA-DP).

SMALLEST & LIGHTEST HYDRAULIC JACK ON THE MARKET

Adjustment specifications

With the Micro Jacker in place, you will have about 8.5″ to work with in height. This includes 1.5″ of adjustment at the transom, another 1.0″ on the motor side, 1.0″ of adjustment with the motor, and 5″ of hydraulic lift with the Micro Jacker itself.

Horsepower note: To the best of T-H Marine’s knowledge, Honda has the only 115 horsepower outboard that exceeds 425 pound dry weight. Therefore, the ATLAS Micro cannot be used with Honda’s 115 HP outboard. This is based on publicly available internet specifications on outboard manufacturer websites know to T-H Marine as of 4/9/2014.

Purchaser should assure that their outboard does not exceed either 115 horsepower or 425 pounds, regardless of outboard manufacturer, model, or production date.

Specs

• Max Weight: 425 lbs
• Max Horsepower: 115 hp
• Weight: 23 lbs
• Width: 14 5/8″
• Height: 11 1/2″
