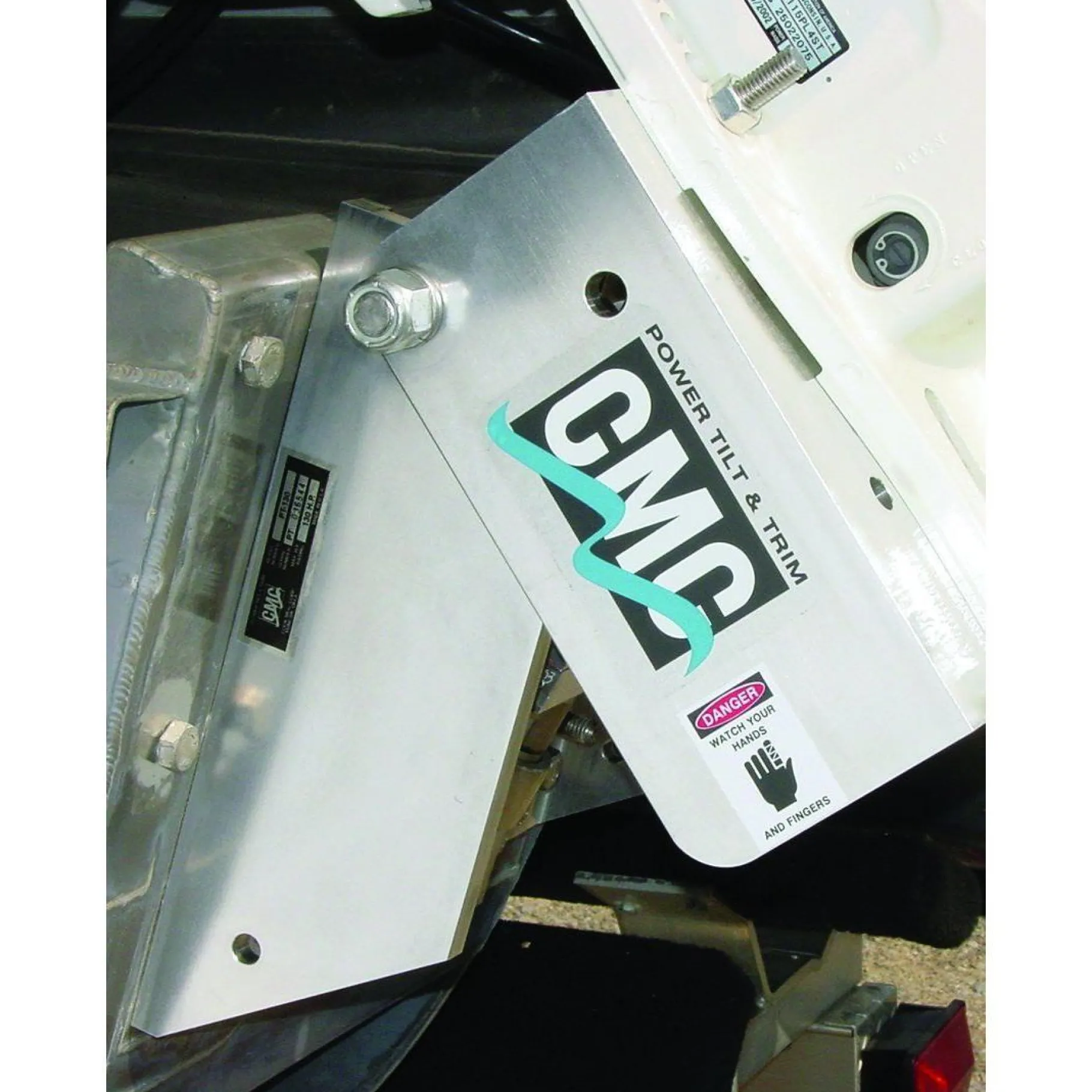

CMC Jack Plates & Trim Units-PT-130 Tilt and Trim for up to 130 HP

Features

• Rated for 130 H.P. and Smaller Motors
• 6″ Set Back to Enhance Boat Stability and Performance
• 20° of Trim and a Total of 90° of Tilt and Trim
• 1/2″ 6061 T6 Extruded Aluminum Construction with Stainless Steel Fasteners
• Electric Hydraulic Actuator Rated at 7853 lbs. of Thrust!
• Standard B.I.A. Bolt Hole Pattern
• Convenient Adapter Kit Available for Clamp-on Motors
• Four Stainless Steel Motor Mounting Bolts Included

With the Electric Hydraulic Tilt & Trim you get power tilt & trim, better boat handling, more speed, lower fuel consumption and no more back strain!

Read CMC Marine’s Warranty Policy Here

Specs

• Power Rating: Up to 130 HP
• Set Back: 6″
• Trim: 20°
• Tilt: 90°
• Material: 1/2″ 6061 T6 Extruded Aluminum
• Bolt Hole Patterin: Standard B.I.A.
• Actuator Rating: 7853 lbs. of Thrust
