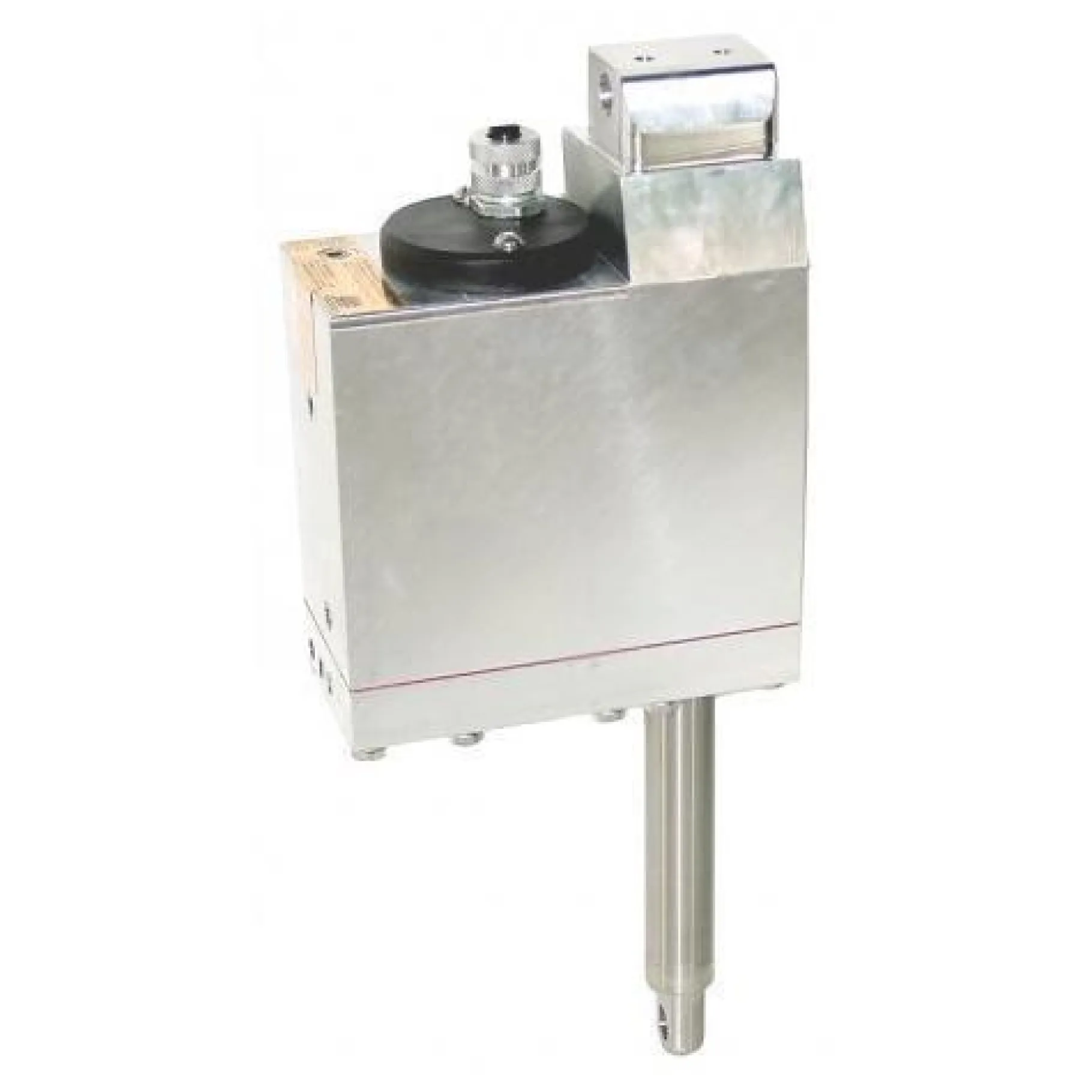

CMC Jack Plates & Trim Units-ATLAS™ Tilt and Trim Actuator

Features

• CMC Power-Lift hydraulic jack plates (models: 61001, 61002, 65001, 65002, 65501 & 65502)
• T-H Marine Hydro-Jacker hydraulic jack plates (models: HYJ-6C-DP, HYJ-10C-DP)
• CMC Power Tilt & Trim Units (PT-130 models: 13001, 13002)
• ATLAS Tilt & Trim Units (models: THT-130C-DP)

Read CMC Marine’s Warranty Policy Here

Standard Actuator – Power-Lift, Hydro-Jacker, and Tilt & Trim (not for High Speed jack plate models)

This actuator will fit all late model CMC Tilt & Trims, ATLAS Tilt & Trims, CMC Power-Lift hydraulic plates, and T-H Hydro-Jacker hydraulic plates that have the one piece motor/hydraulic actuator assembly. Not for high speed versions of hydraulic jack plates.

Hydraulic Actuators are completely self contained with their own fluid reservoir. They incorporate the pump, motor, reservoir and cylinder all in the same body. This eliminates the need for multiple hydraulic components such as hoses, pumps and cylinders.

Actuator can be utilized in almost any type of environment. Made of 100% non-ferrous materials and are totally submersible. They contain a no-leak seal and wiper that keeps dirt and water out of the working parts.

Specs

• Motor type: Permanent Magnet 12VDC
• Fluid capacity: 21 cu. in.(0.7 pint)
• Weight with fluid: 12.5 lbs.
• Material: 6061-T6 aluminim alloy construction.
• Fasteners: 18.8 Stainless Steel
• Stroke length: 5”
• Thrust (Extend): 5000 lbs. min.
• Thrust (Retract): 3750 lbs. min.
• Rate of Travel: 15 in. per min.

Full Specifications Click Here
