T-H Marine Plumbing & Drains-Manifold Systems

Features

Our manifold system is adaptable to many applications. The wide range of fittings available allow the boat builder or consumer to plumb many varying outlets to one drain, or one source to many outputs. These molded manifold parts do not need electrical bonding. These components are much less expensive than the brass alternatives. Great for attaching to pump outlets or seacocks.

Features:

• Molded of glass filled polymer
• Less expensive than brass
• Great for pump outlets and seacocks
• Easily connect many water outlets

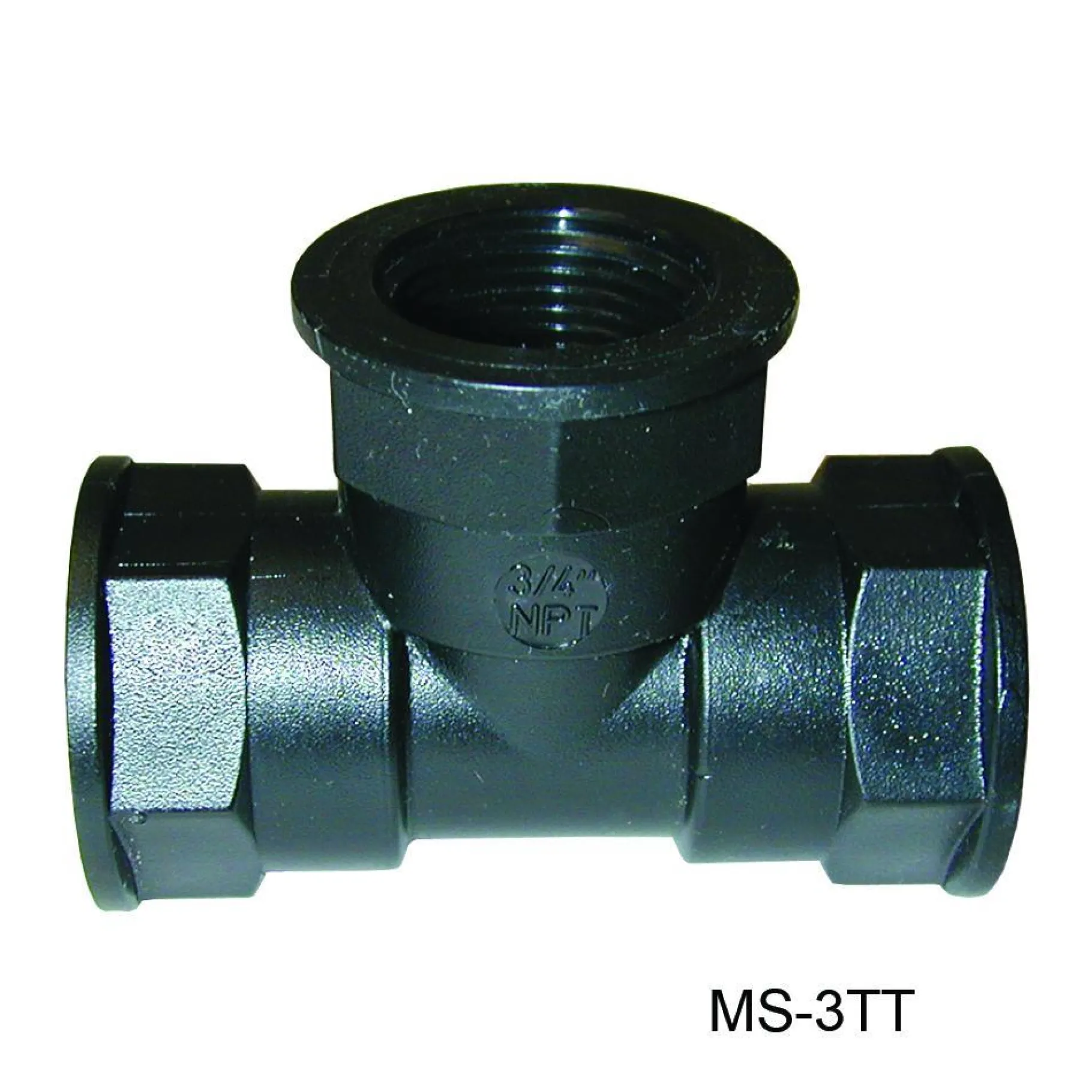

Manifold Tee Fitting– this is the base body of our system, all other fittins connect to these manfiold bodies to create your custom manifold system. Available in four national pipe thread sizes (3/4″, 1″, 1-1/4″, 1-1/2″) to accomodate multiple flow rates needed.

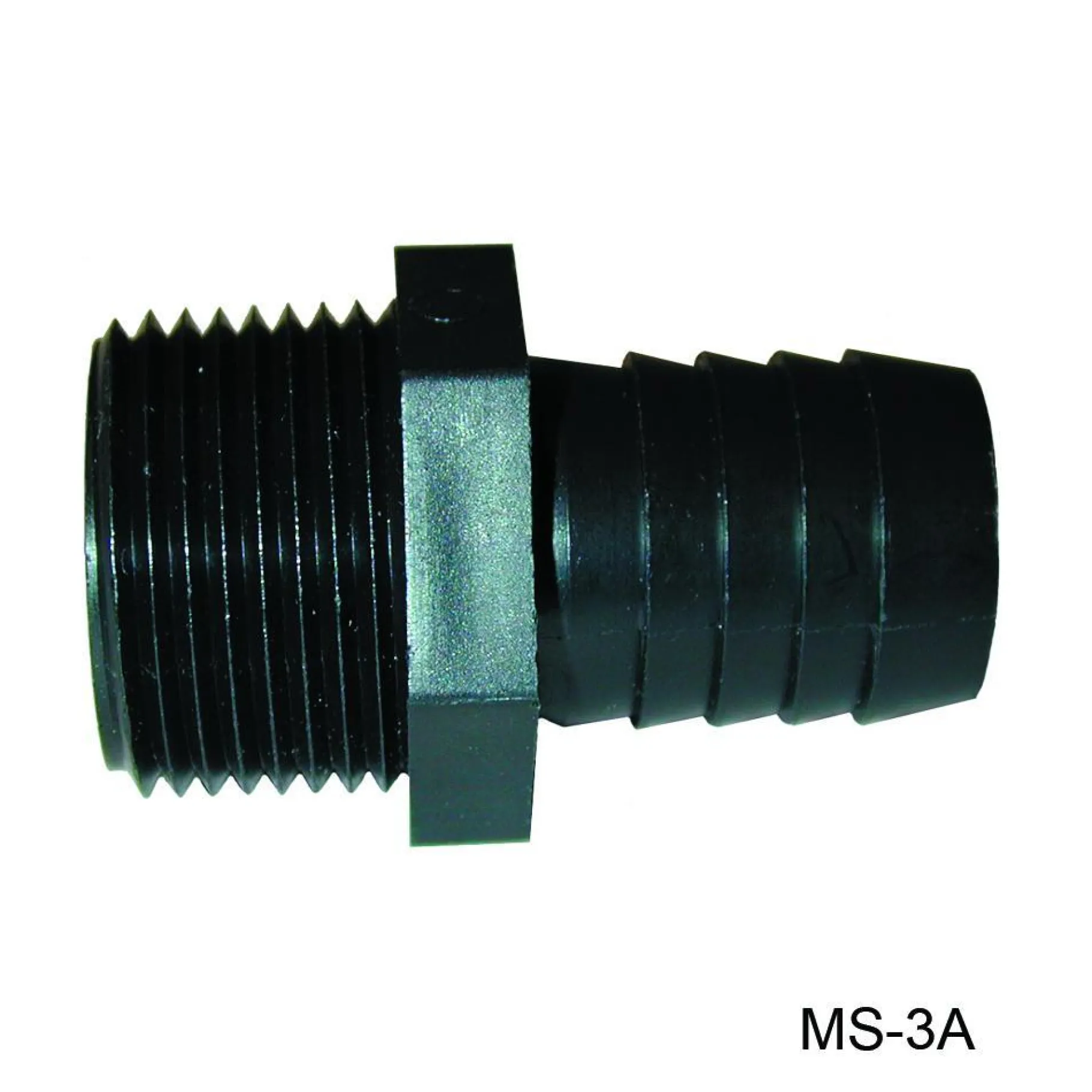

Straight barb adapter fittings– these “tailpipe” fittings work to adapt a hose barb connect hose to the manifold. They can also be used with seacocks and ball valves with female threads (FNPT) to connect to a hose. Adapts MPT thread to hose barb. Five sizes available.

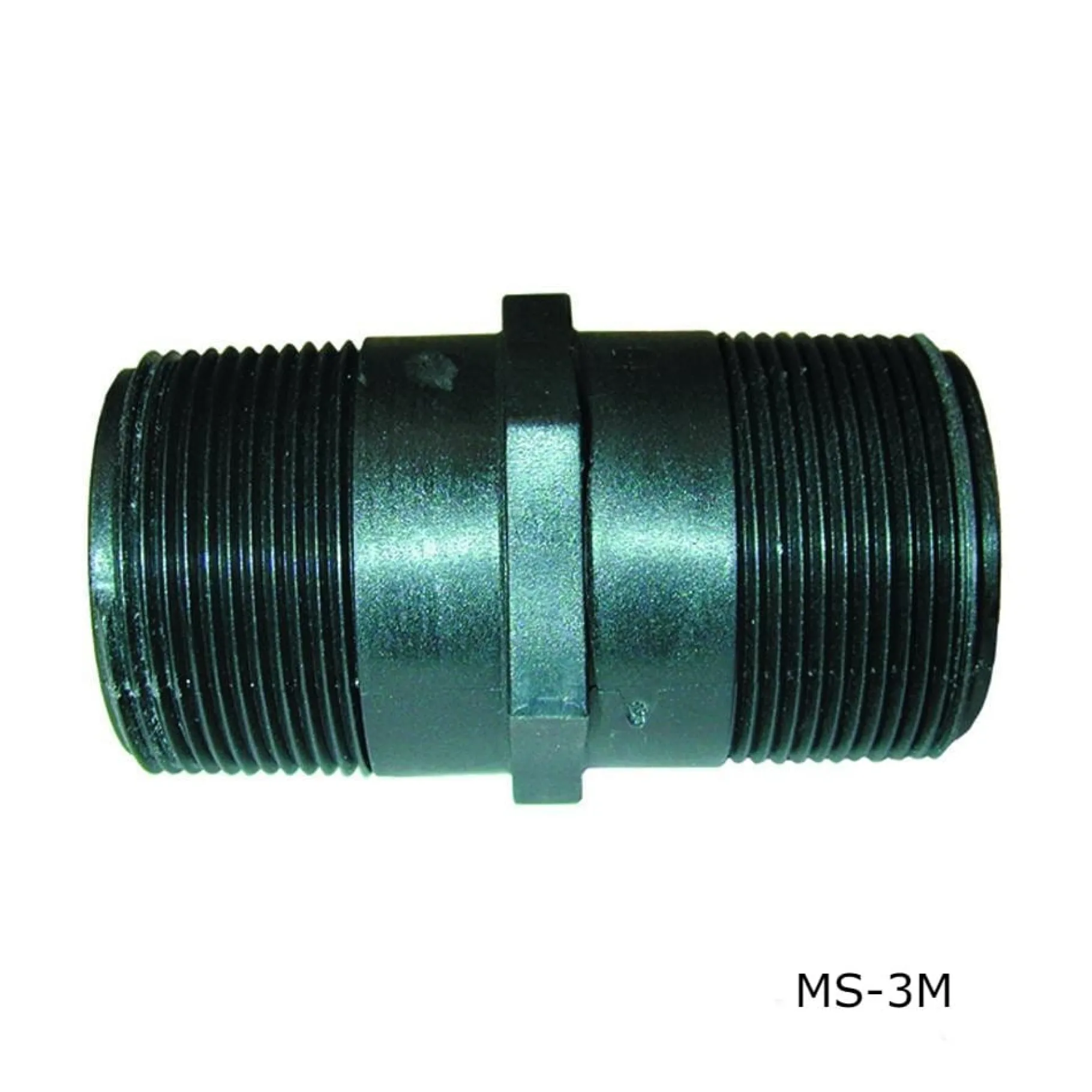

Nipple fittings– these male national pipe thread fittings allow you to connect to female pipe thread products together. Perfect for attaching seacocks to our manifold tee bodies. Four sizes available.

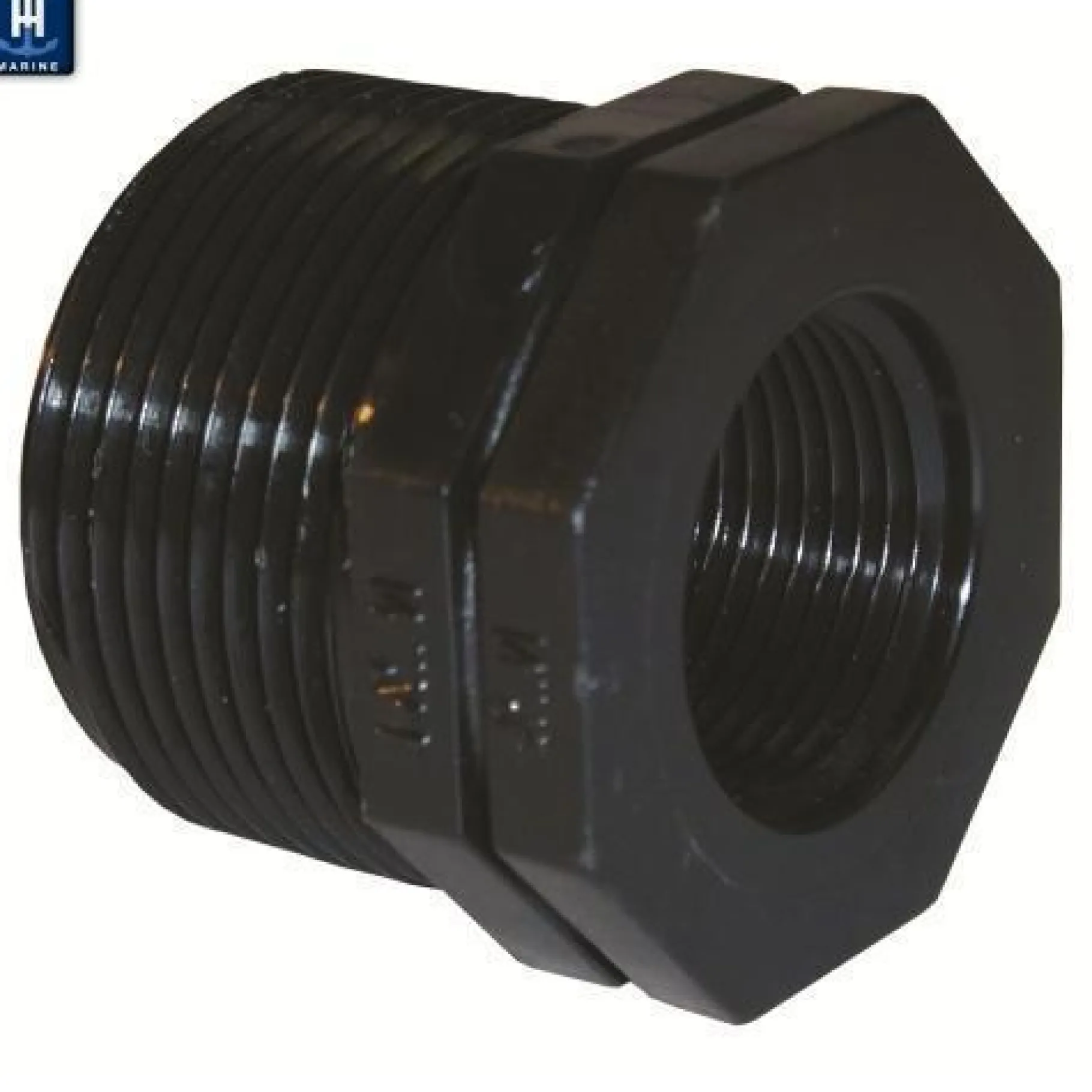

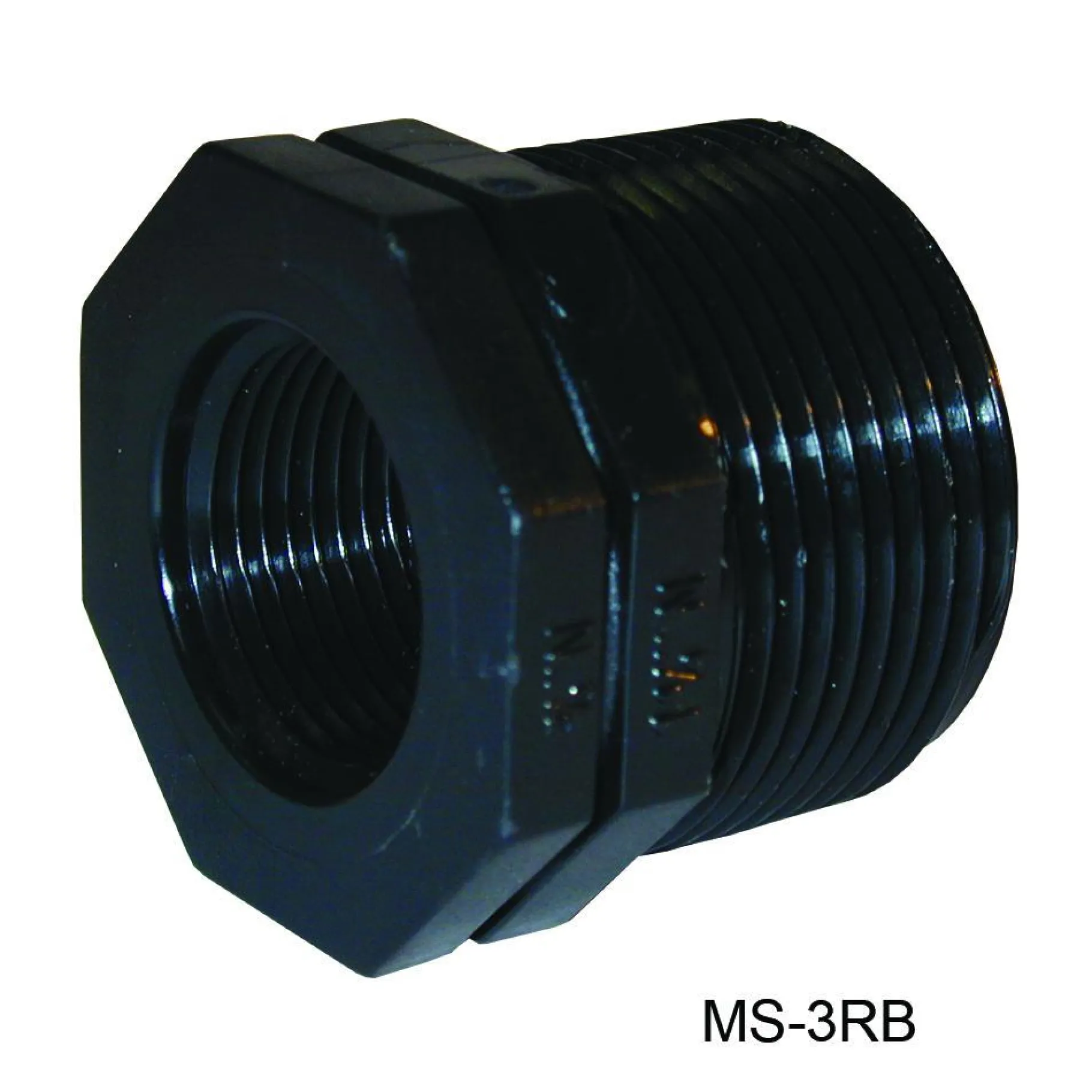

Reducer thread fittings– the adapters allow you to neck down a larger female pipe thread outlet to a smaller femal pipe thread outlet; therefore, allowing you to connect smaller male pipe thread apparatus. These work grreat for connect many marine water pump outlets to our manifold system. Available in three sizes.

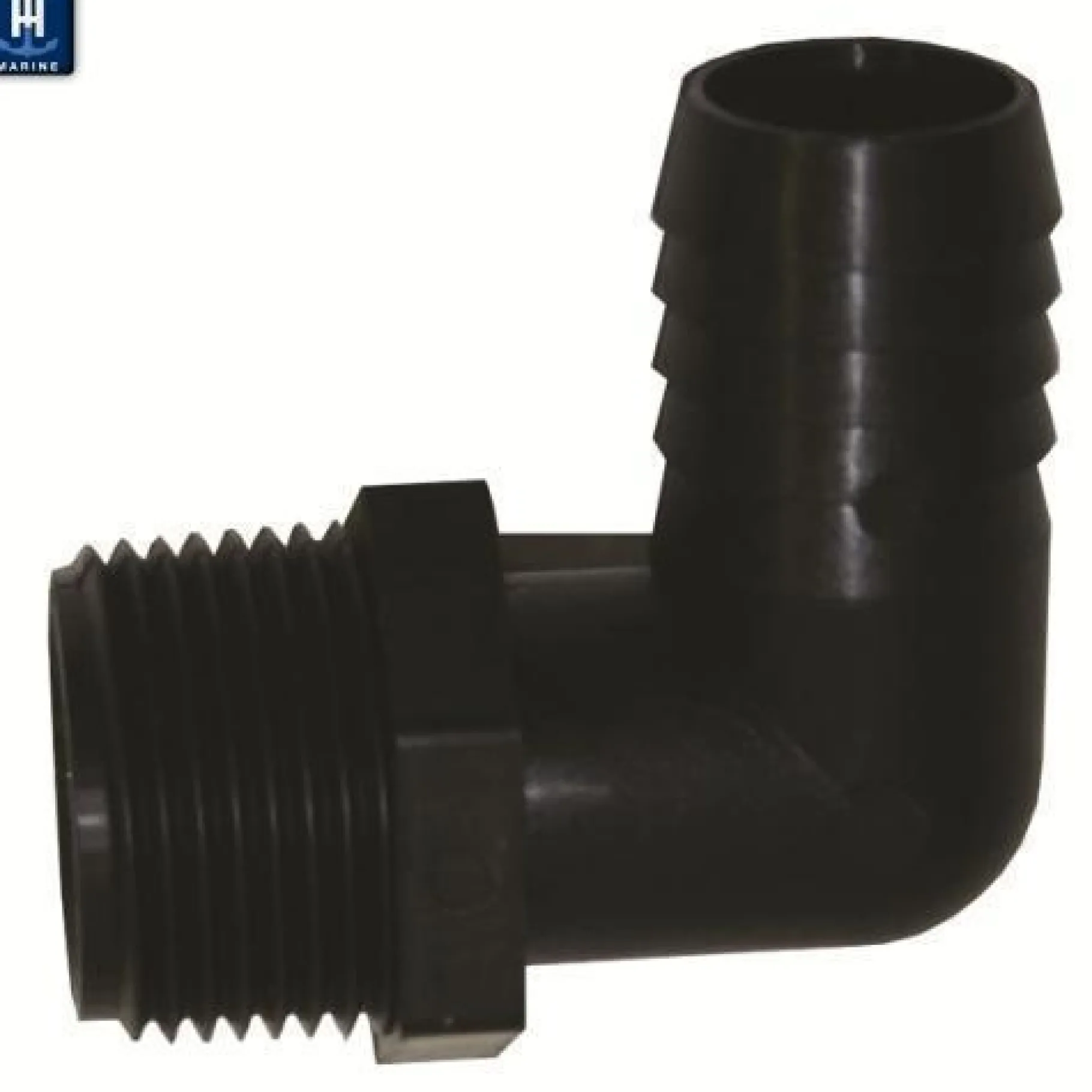

90 Degree Elbow Fittings– the 90 degreee elbow female pipe thread to hose barb adapters allow more convenient connection of hoses to the manifold tee, a ball valve, or a seacock. Adapts MPT thread to hose barb. Three sizes available.

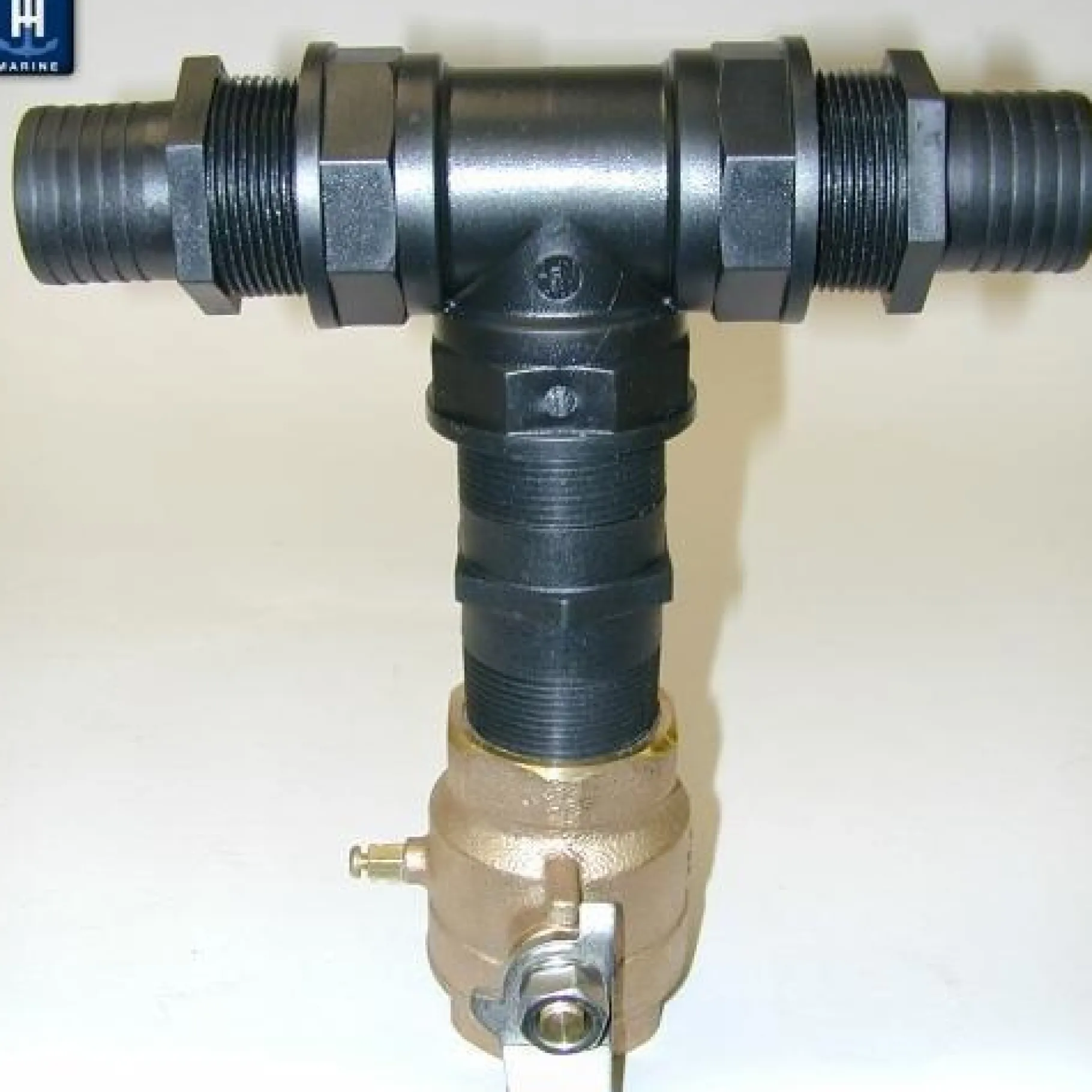

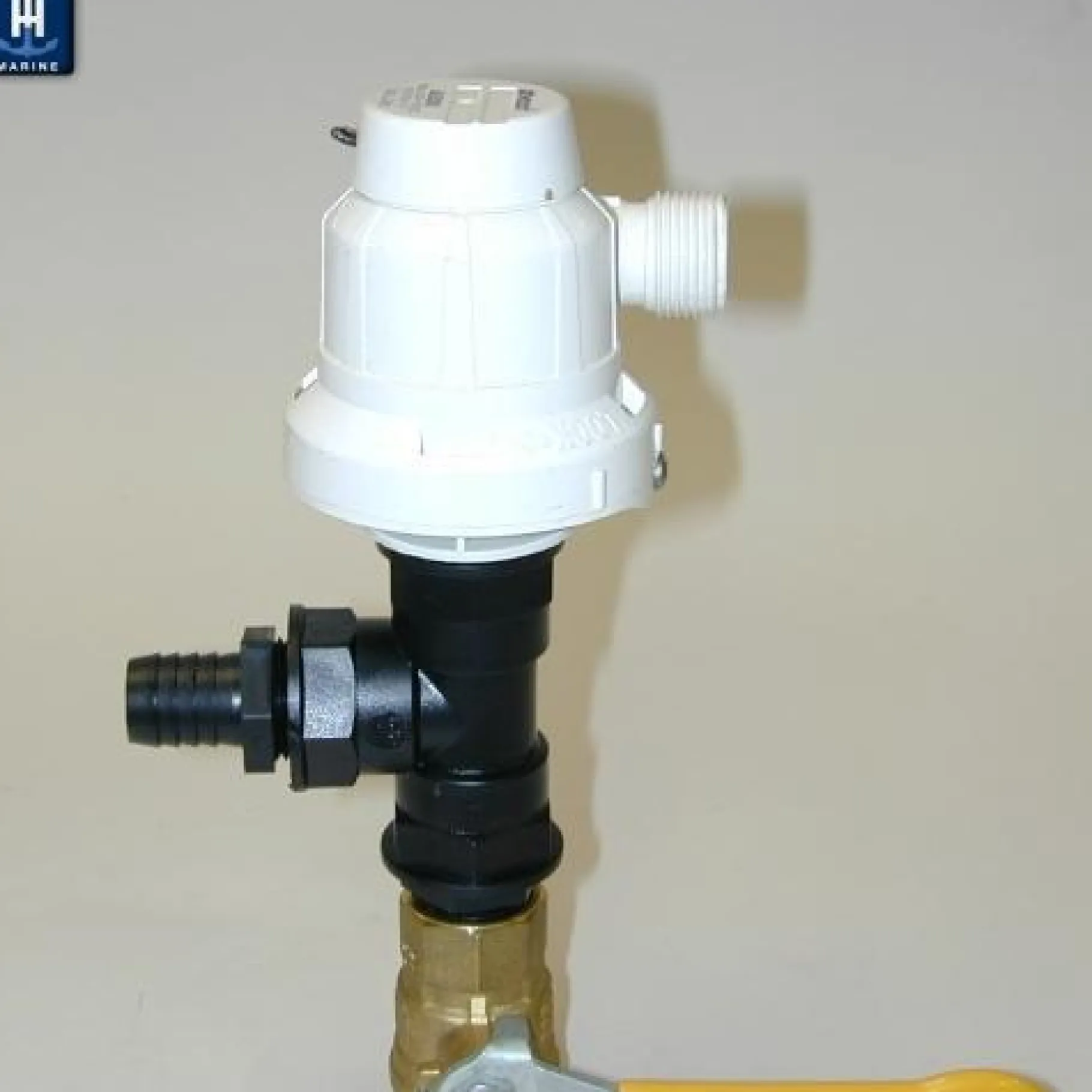

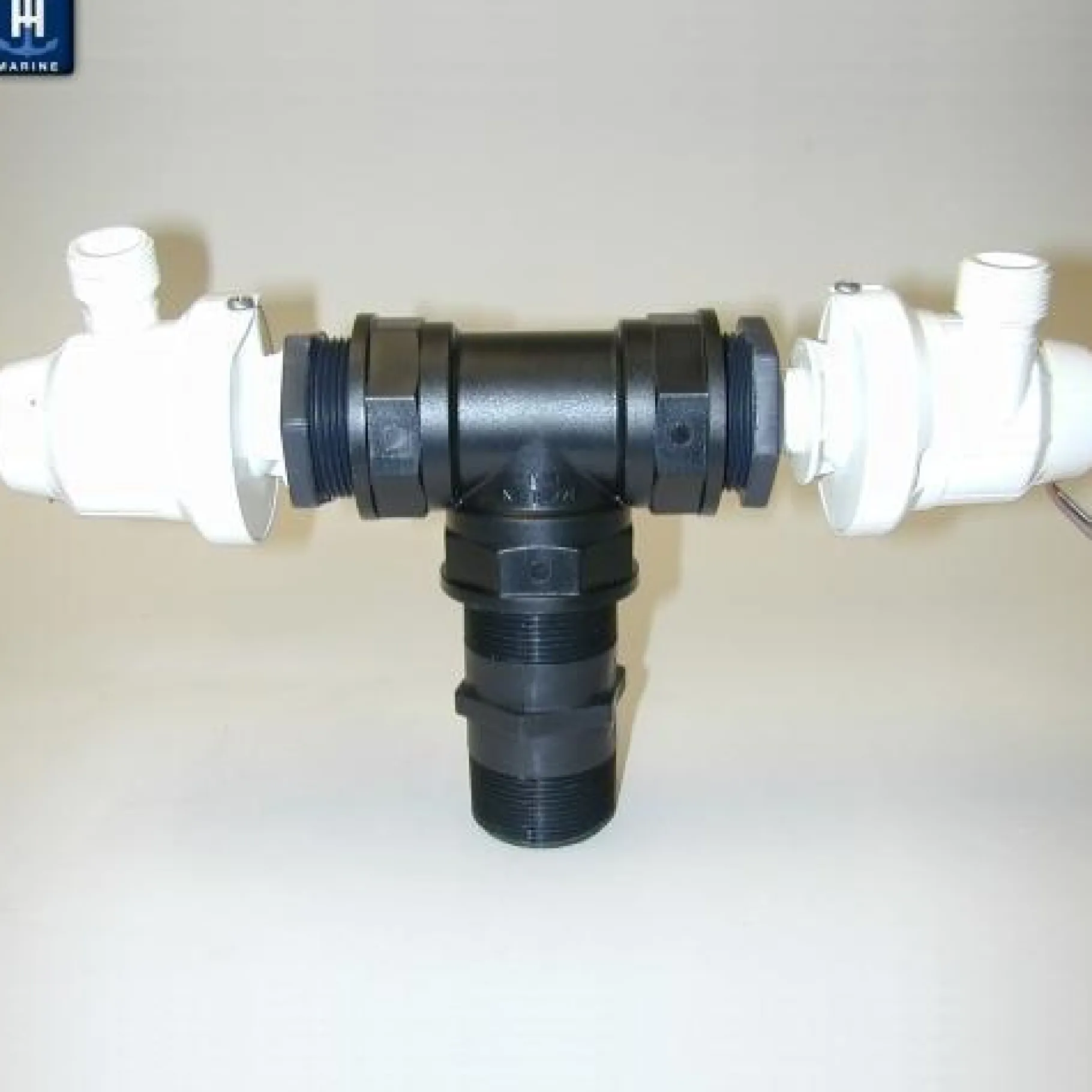

Application photos below: (pump/seacock/nipple), (seacock to main drain), (dual pump to intake)

Note:

Standard Pack:
OEM – Bulk 50/Box
