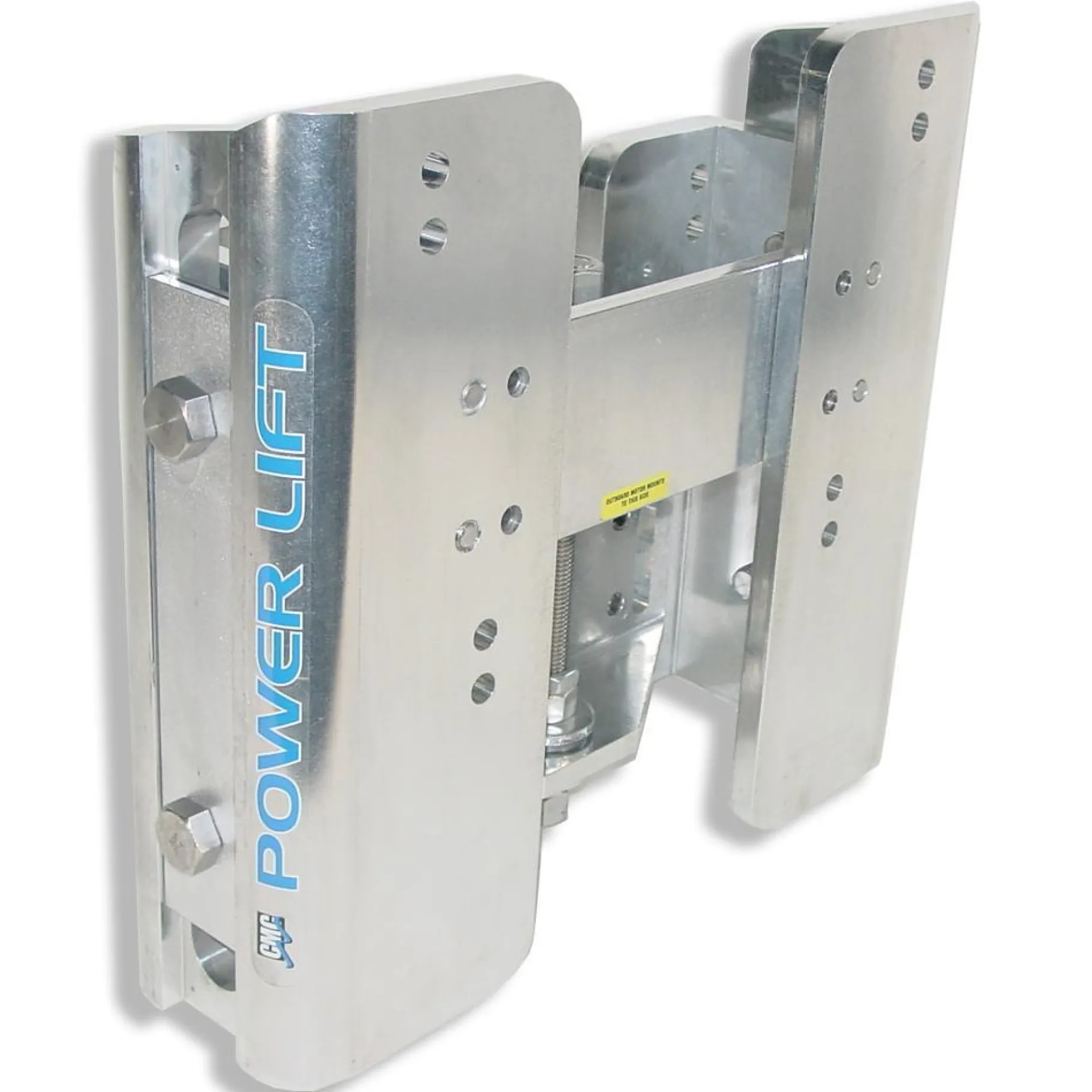

CMC Jack Plates & Trim Units-Manual Jack Plates
$160.00
These high-quality manual jack plates are designed for optimal boat performance with options for both one-piece and two-…
These high-quality manual jack plates are designed for optimal boat performance with options for both one-piece and two-piece configurations. Constructed from durable 6061 extruded aluminum and stainless steel fasteners, they provide maximum strength and longevity.
- One-piece model available with 5 1/2″ and 10″ setbacks.
- Two-piece model features slot adjustments of 5″ at the motor and 1 1/2″ at the transom.
- Rated for up to 400HP, compatible with standard B.I.A. bolt patterns.
Features
One Piece Manual
- Made of 6061 T6 extruded aluminum alloy
- Stainless steel fasteners for maximum strength and durability
- Centrally located adjustment screw for positive alignment
- 5 1/2″ and 10″ Set Backs from Transom are available
- 5″ Vertical Adjustment
- Designed to fit standard B.I.A. bolt pattern
- Aluminum models rated for up to V6 outboards
Two Piece Manual
- Made of 6061 T6 extruded aluminum alloy
- Stainless steel fasteners for maximum strength and durability
- 4″ and 5 1/2″ Set Backs from Transom are available
- 5″ of slot adjustment at the motor mounting bracket
- 1 1/2″ of adjustment at the transom bracket
Read CMC Marine’s Warranty Policy Here
Contact your boat manufacturer or local dealer for setback recommendation for your particular boat and also the affects adding a jack plate can have on your boat
Manual ML-65HD, item#65512 rated for V8 400HP outboards
| OEM/Bulk | Product Name |
|---|---|
| 65012 | CMC, ML-65 Manual Jack Plate, 5 1/2″ setback |
| 61012 | CMC, ML-65-10 Manual Jack Plate, 10″ setback |
| 55012 | CMC, Two Piece Manual Jack Plate, 5 1/2″ setback |
| 40012 | CMC, Two Piece Manual Jack Plate, 4″ setback |
| 65512 | CMC, ML-65HD Heavy Duty Manual Unit for400 Hp V8s and Smaller |
| 65013 | 5-1/2″” Set Back – Manual Model one piece, 2″ of vertical adjustment |
Specs
One Piece Manual
- Material: 6061 T6 extruded aluminum alloy
- Available Set Backs: 1/2″, 10″
- Vertical Adjustment: 5″
- Mount: Fits standard B.I.A. bolt pattern
- Aluminum model rating: Up to V6 outboards
Two Piece Manual
- Material: 6061 T6 extruded aluminum alloy
- Available Set Backs: 4″, 5 1/2″
- Slot Adjustment at Motor Bracket: 5″
- Adjustment at Transom Bracket: 1 1/2″
