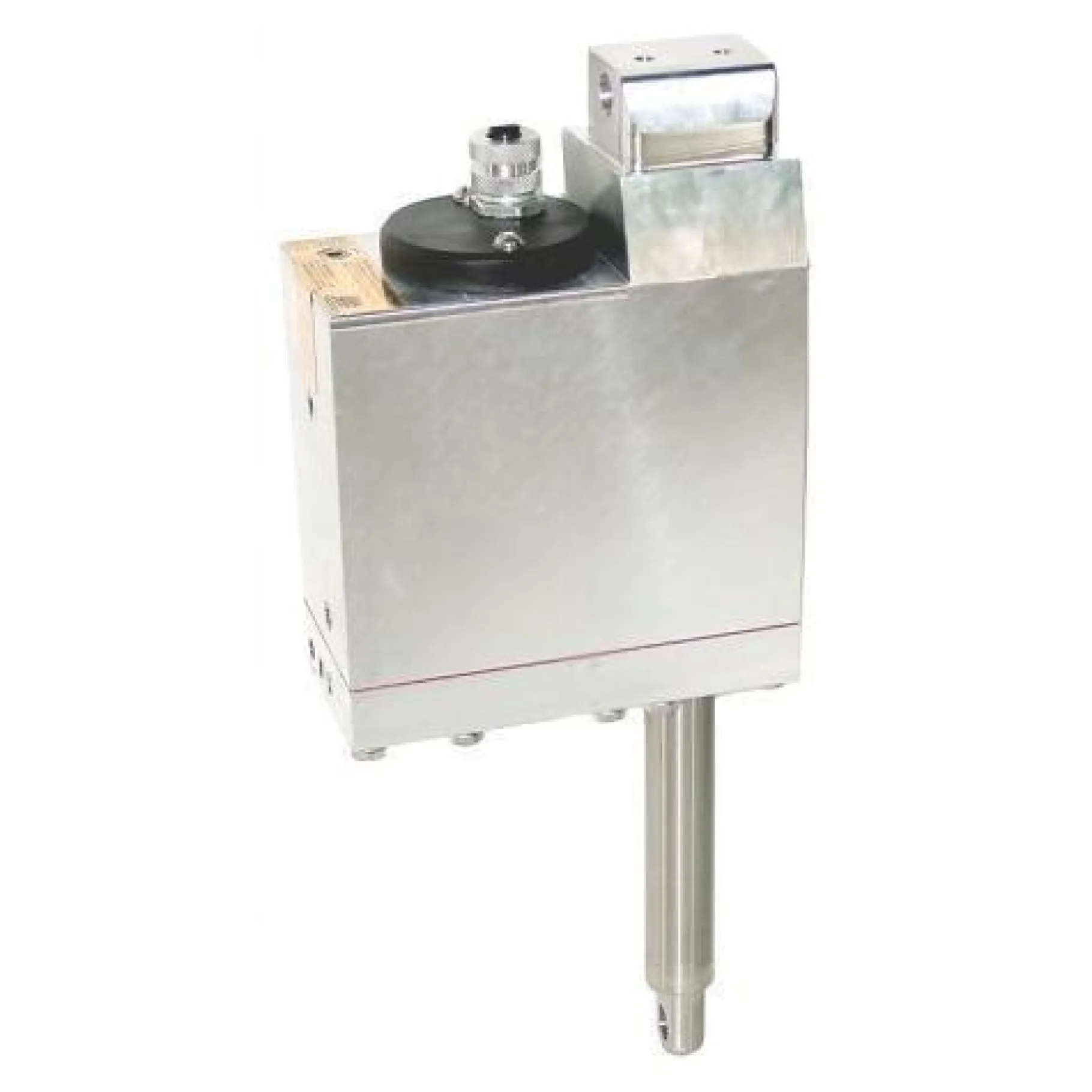

CMC Jack Plates & Trim Units-High Speed POWER-LIFT Actuator

Features

Replacement high speed hydraulic actuator for:

• CMC Power-Lift hydraulic jack plates (models: 61301, 61302, 65301, 65302)
• CMC PT-35 Tilt and Trim (model: 52100)
• T-H Marine Hydro-Jacker jack plates (models: HYJ-6HSC-DP, HYJ-10HSC-DP)
• T-H Marine ATLAS Micro Jacker (model: AHJM-4-DP)

The CMC High Speed POWER-LIFT Actuator is a patented High Speed Actuator for High Speed Power-Lift and Hydro-Jacker models

This actuator will fit all late model CMC Power-Lift HS (high speed) hydraulic jack plates, and T-H Marine Hydro-Jacker HS (high speed) hydraulic plates that have the one piece motor/hydraulic actuator assembly. Not for”standard” versions of hydraulic jack plates – but can be used to retrofit standard versions to higher speed version.

Hydraulic Actuators are completely self contained with their own fluid reservoir. They incorporate the pump, motor, reservoir and cylinder all in the same body. This eliminates the need for multiple hydraulic components such as hoses, pumps and cylinders.

Actuator can be utilized in almost any type of environment. Made of 100% non-ferrous materials and are totally submersible. They contain a no-leak seal and wiper that keeps dirt and water out of the working parts.

Full Specifications Click Here

Read CMC Marine’s Warranty Policy Here

Specs

• Motor type: Permanent Magnet 12VDC
• Fluid capacity: 21 cu in (0.7 pint)
• Weight with fluid: 12.5 lbs
• Material: 6061-T6 aluminum alloy
• Fasteners: 18.8 Stainless Steel
• Stroke length: 5″
• Thrust (Extend): 3141 lbs min
• Thrust (Retract): 1744 lbs min
• Rate of Travel: 37 in per min
