T-H Marine Plumbing & Drains-1-1/8 inch 90 degree Thru-Hull Fittings
$11.05
T-H Marine is the leading plastic thru-hull supplier in the U.S.A., known for high-quality fittings preferred by OEM boa…
T-H Marine is the leading plastic thru-hull supplier in the U.S.A., known for high-quality fittings preferred by OEM boat builders. These fittings offer exceptional durability and UV stabilization, ensuring long-lasting performance.
- Standard 90-degree fittings feature a unique finished head and a pass-around nut for ease of installation.
- Dual nut thru-hulls allow for various mounting thicknesses and enable topside installation.
- Spaner head thru-hulls provide accessibility for hard-to-reach applications with a finished head nut for tightening.
Features
T-H Marine – #1 Plastic Thru-Hull Supplier in the U.S.A.
Our molded Thru-Hull fittings are used by more OEM boat builders than any other brand.
All T-H Marine Thru-Hull Fittings are made of the highest quality virgin material to ensure consistent size, extra durability and attractive appearance. All materials are UV stabilized to provide longevity. T-H Marine has worked with major hose manufacturers to guarantee that our hose barbs have the exact specifications to fit hose securely so that your installations will be trouble free.
- STANDARD 90 DEGREE THRU-HULLS- Our standard 90 degree fittings feature a unique finished head and a pass-around nut for easier and more attractive installation, an innovation that T-H Marine developed.
- DUAL NUT THRU-HULLS (TH-90 / TH-92)- Traditional two nut 90 degree fittings. Allows for variety of mounting thicknesses. May be used where installtion must be done from the topside with a traditional nut.
- SPANER HEAD THRU-HULLS, 3/4″ and 111/8″ (TH-7590S, TH-1290S)- For those hard to reach applications that may or may not require low clearance. This spaner head thru-hull allows for installation and tightening from the top with a finished head nut.
| OEM/ Bulk | Product Name | Packaged |
|---|---|---|

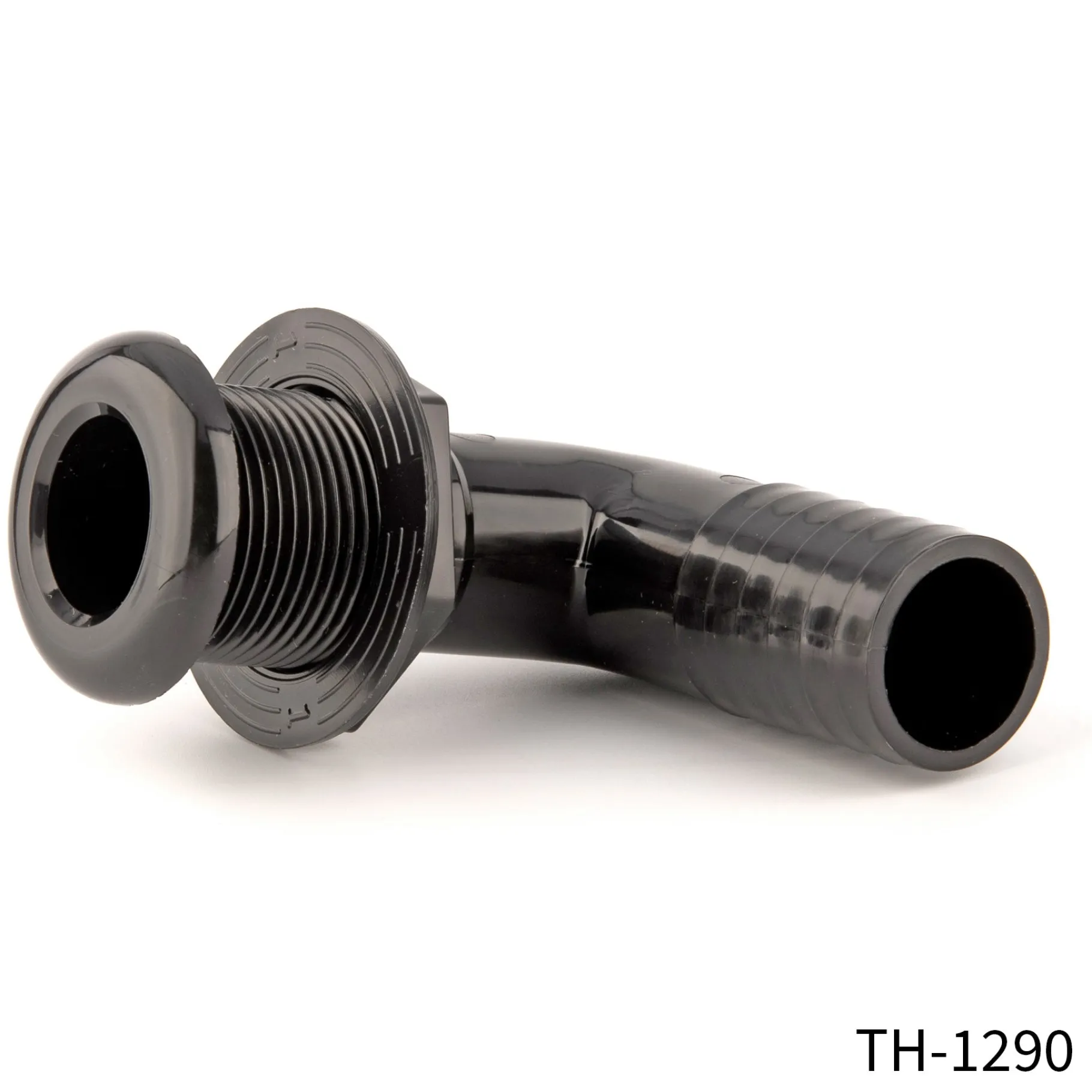

| TH-1290 | Thru Hull – 90 Deg, – 1 1/8″ Hose – Black | TH-1290-DP |

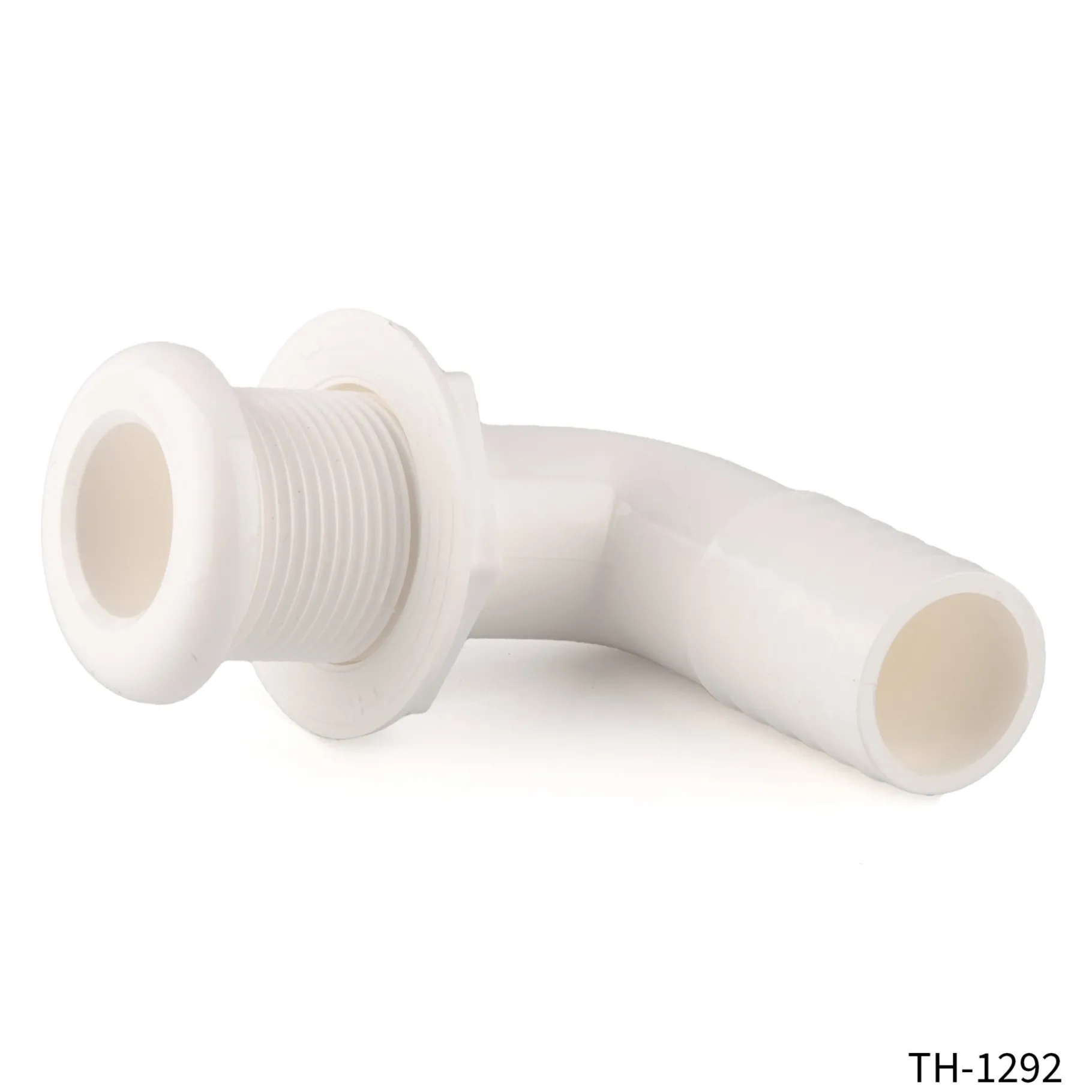

| TH-1292 | Thru Hull – 90 Deg. – 1 1/8″ Hose – White | TH-1292-DP |

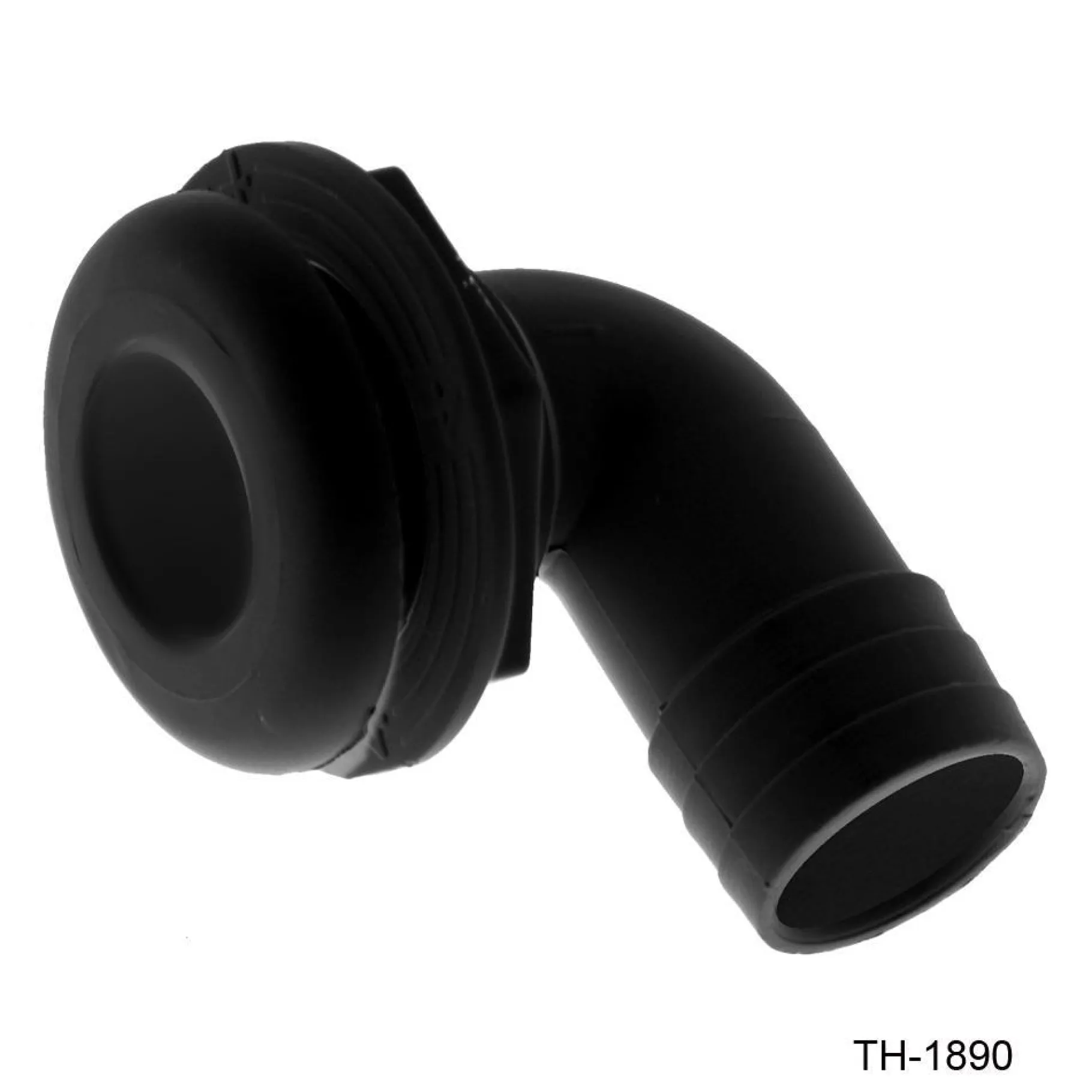

| TH-1890 | Thru Hull – 90 Deg. – 1 1/8″ Hose – SHORT – Black DISCONTINUED | TH-1890-DP |

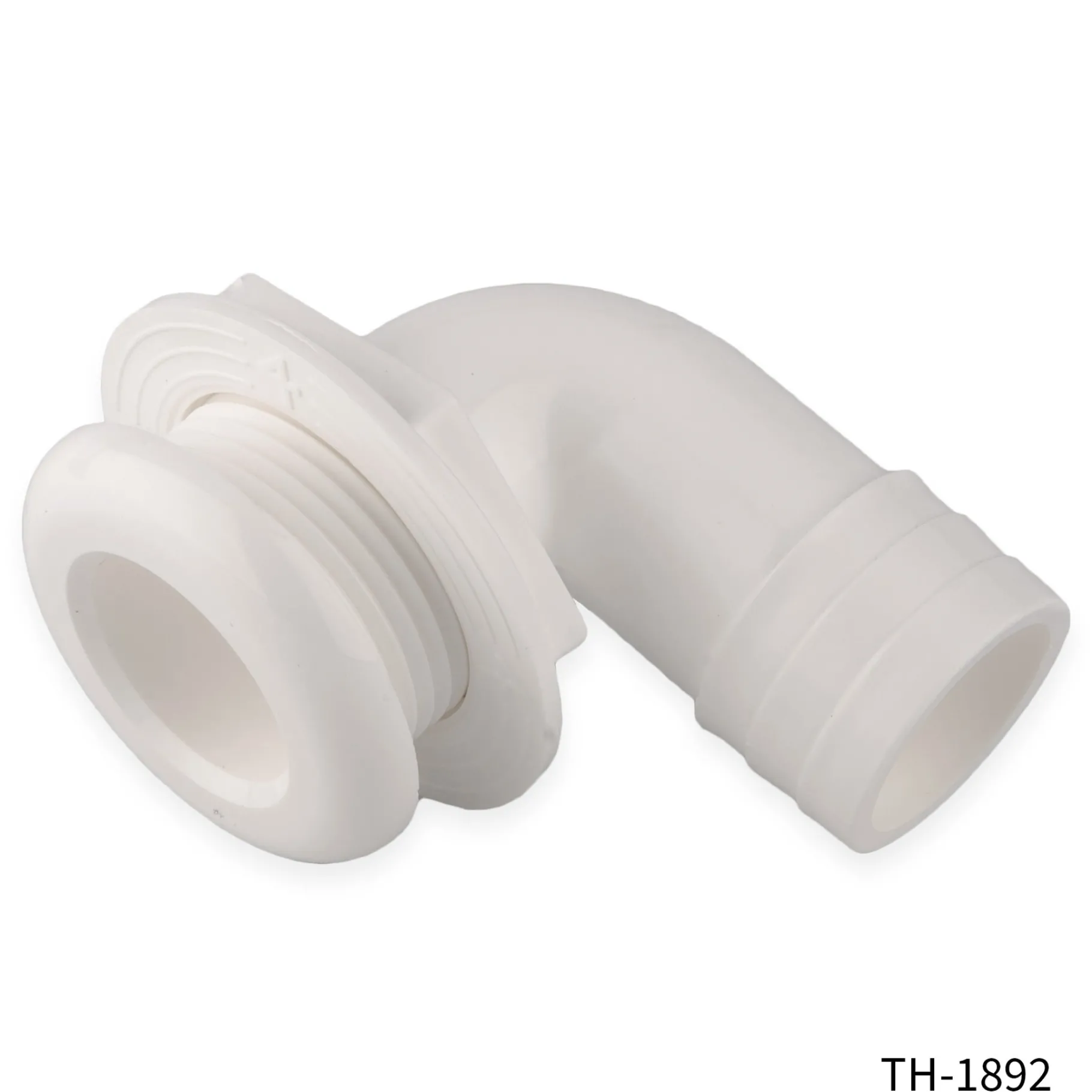

| TH-1892 | Thru Hull – 90 Deg. – 1 1/8″ Hose – SHORT – White | TH-1892-DP |

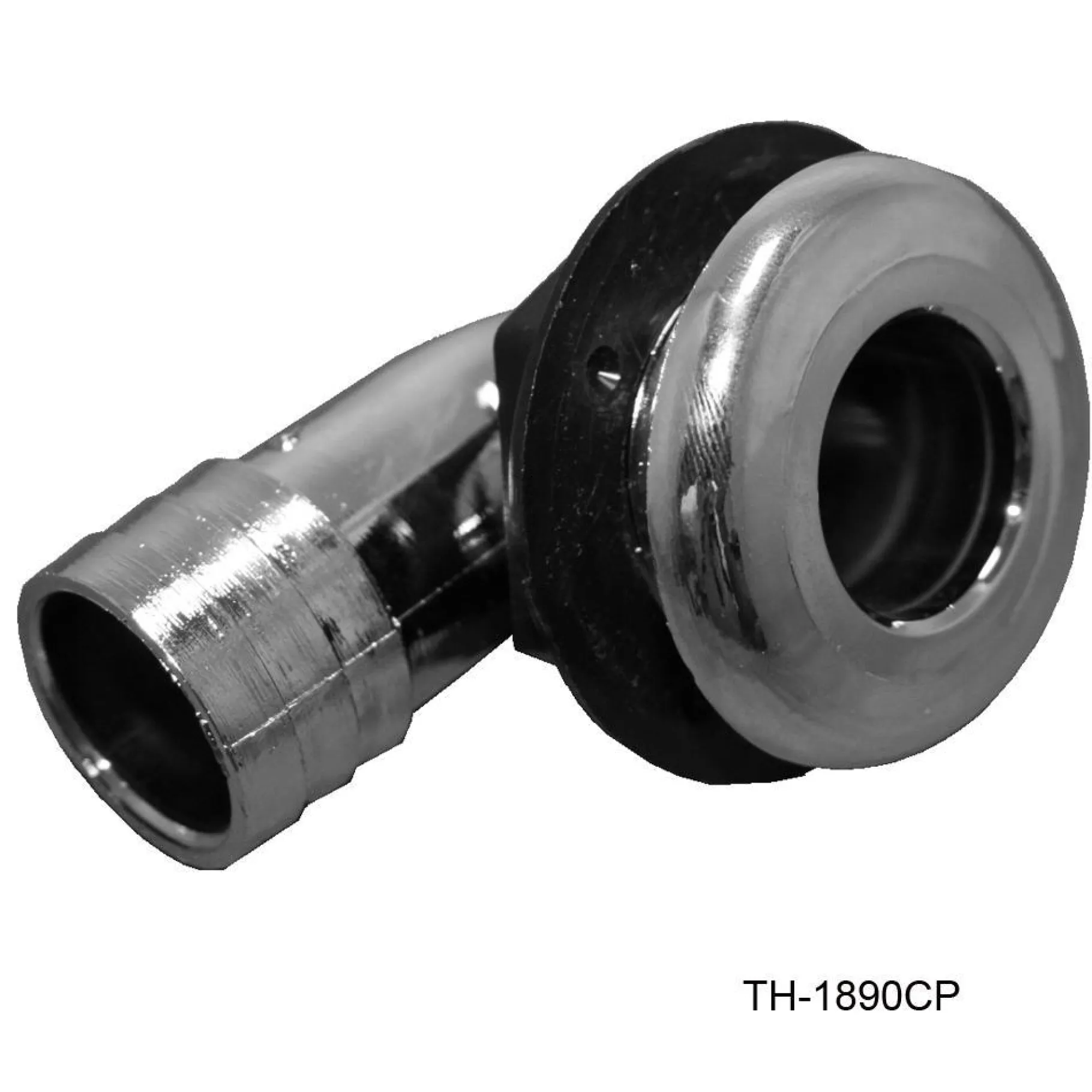

| TH-1890CP | Thru Hull Short – 90 Degree – 1-1/8″ Hose – Chrome Plated | TH-1890CP-DP |
| TH-1290S | Thru-Hull – 90 Deg. – Spaner Head – 1 1/8″ Hose – Black | TH-1290S-DP |

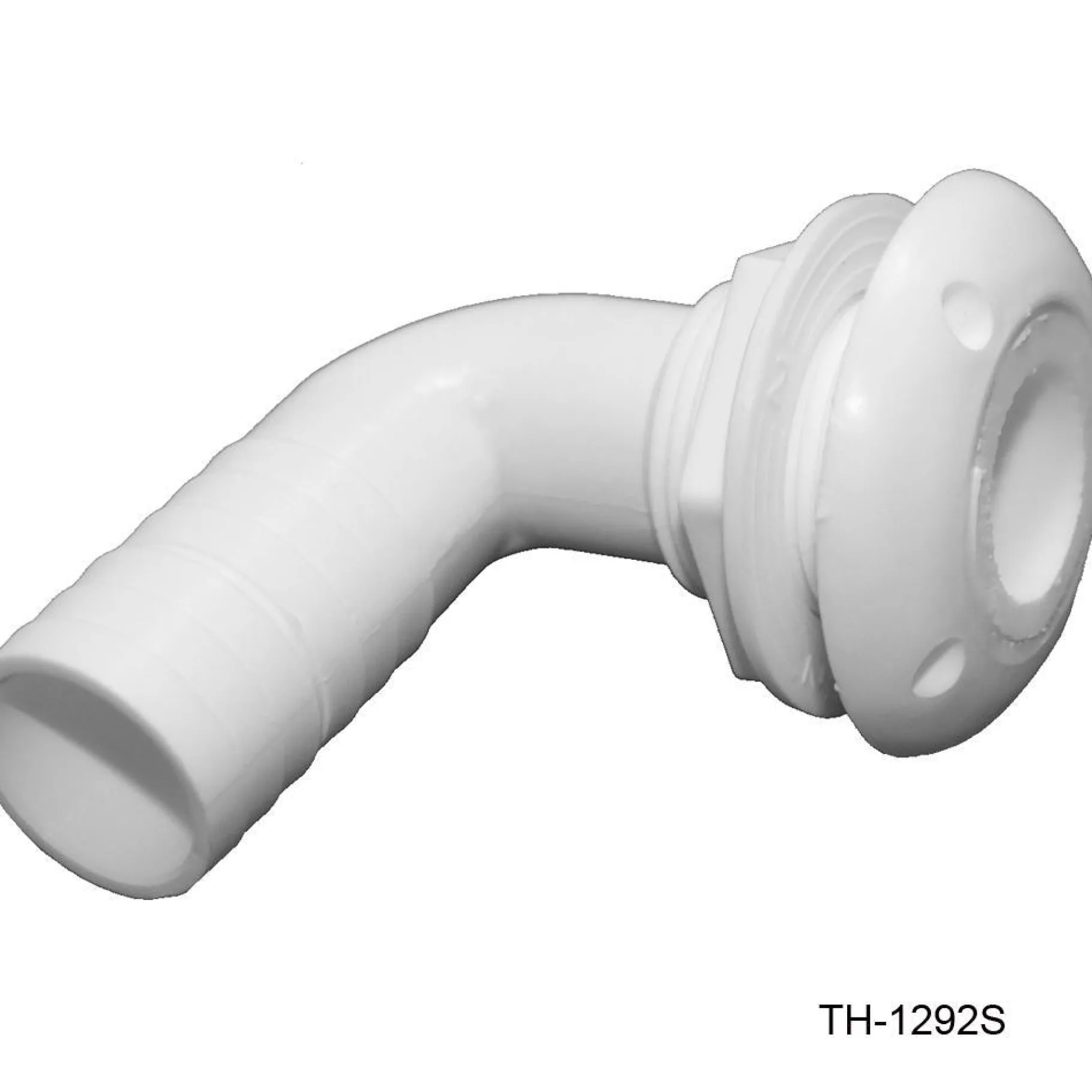

| TH-1292S | Thru-Hull – 90 Deg. – Spaner Head – 1 1/8″ Hose – White | TH-1292S-DP |
| TH-1892-Ba | Thru Hull – 90 Degree – 1 1/8″ Hose – SHORT – White – One Nut | TH-1892-DP |
| TH-1890CPa | Thru Hull – 90 Deg. – 1-1/8″ Hose – SHORT – Chrome Plated | TH-1890CP-DP |
| TH-1890CPb | Thru Hull – 90 Degree – 1-1/8″ Hose – SHORT – Chrome Plated | TH-1890CP-DP |
| TH-1890-Ba | Thru Hull – 90 Degree – 1 1/8″ Hose – SHORT – Black – One Nut | TH-1890-DP |
Standard Pack:
OEM – Bulk 50/Box
Distributor Packaged – 12/Box
Specs
| Black Part # | White Part # | Chrome Part # | A | B | C | D (hose) | E |
| TH-1290 | TH-1292 | TH-1290CP | 1-3/4″ | 3-1/2″ | 1-1/8″ | 1-1/8″ | 1-3/8″ |
| TH-1890 | TH-1892 | TH-1890CP | 1-3/4″ | 2-1/4″ | 3/4″ | 1-1/8″ | 1-3/8″ |
| TH-1290S | TH-1292S | N/A | 2-3/8″ | 3-1/4″ | 7/8″ | 1-1/8″ | 1-3/8″ |
