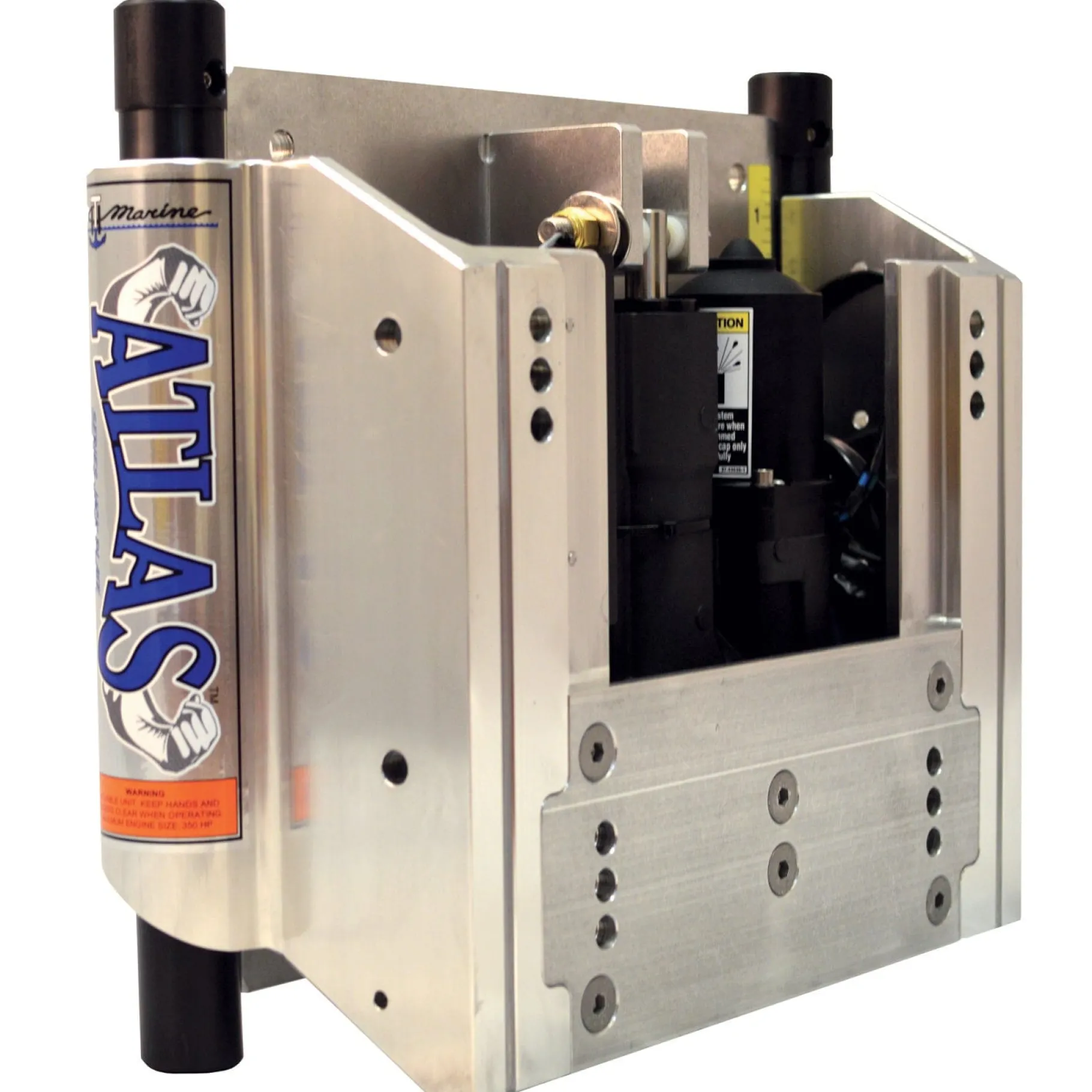

T-H Marine Jack Plates & Trim Units-ATLAS™ Hydraulic Jack Plate

Features

• #1 Selling Jack Plate on the market
• Bottom to Top in Less than 8 Seconds Rod and Slot Lifting Design
• Trouble Free Lifting Action Hi-Tech Engineered Polymer Rods
• 5 Inches Height Adjustment Up to 7 Inches
• Speed and Self-contained Lifting Action
• Comes with relay harness and rocker switch
• Rated for engines up to 300hp Max or up to 625 lbs. dry weight
• Heavy Duty Version Available – Up to 400hp Max

5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE

1. ATLAS™ is truly the best hydraulic jack plate in the world
2. ATLAS™ is factory installed by more boat manufacturers than any other plate
3. ATLAS™ is used by more professional fisherman than any other hydraulic jack plate
4. ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets
5. ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China

6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER

1. ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied
2. ATLAS™ was the first plate to offer pre-drilling for shallow water anchors – the competition copied
3. ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that
4. ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
5. ATLAS™ was the first plate to offer a very simple actuator replacement in the field
6. ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement

**SOME JACK PLATES ARE MADE TO ORDER, WHICH CAN TAKE UP TO 4-6 WEEKS. PLEASE CONTACT US FOR STOCK INFORMATION.

Please note: The yellow ruler sticker is just a visual reference for the driver.  On the Heavy Duty Atlas jack plates the yellow ruler sticker will show approximately 4 ¼” of lift. That is due to the black polymer rods being taller on the Heavy Duty Atlas jack plates and the 1” of lift that is built in to the plate.  The standard Atlas jack plates will show 5” of lift, due to the 1” of lift that is built in to the plate.  To confirm the 5 ¾” of hydraulic lift just raise the jack plate all the way up and measure the hydraulic actuator piston.

Specs

• Max Weight: 625 lbs
• Max Horsepower: 300 hp
• Width: 16 3/8″
• Height: 12 1/2″
• Raise Time: 8 seconds
• Made in U.S.A
