Name: T-H Marine Hatches, Plates &amp; Lids-Lid and Hatch Support Springs
Brand: T-H Marine
SKU: 24696
Availability: InStock

$32.80

These stainless spring steel lid supports are designed to secure and hold lids, hatches, and covers in an open position….

Categories: Hatches, Plates & Lids, Marine Tag: T-H Marine Brand: T-H Marine

Description
Reviews (0)

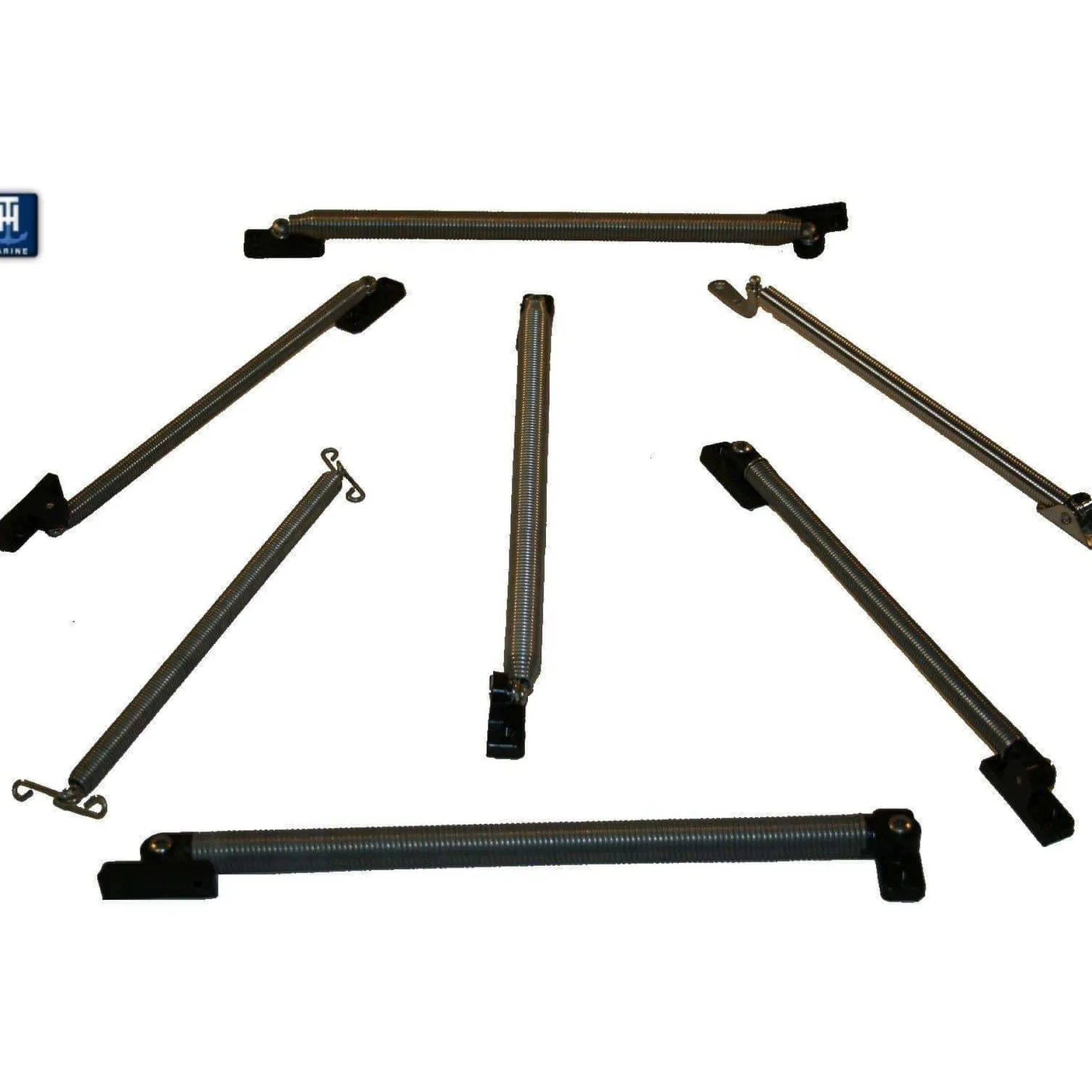

These stainless spring steel lid supports are designed to secure and hold lids, hatches, and covers in an open position. The spring easily bends to close, offering convenient support for various applications.

Supports lids or covers weighing between 10 to 20 lbs.
Features a stainless steel spring that snaps into position for easy opening.
Available in multiple configurations, including versions with restraint cables to prevent overextension.

Features

Stainless Spring Steel
Bends to Close
Supports 10 to 20 lb. Lids

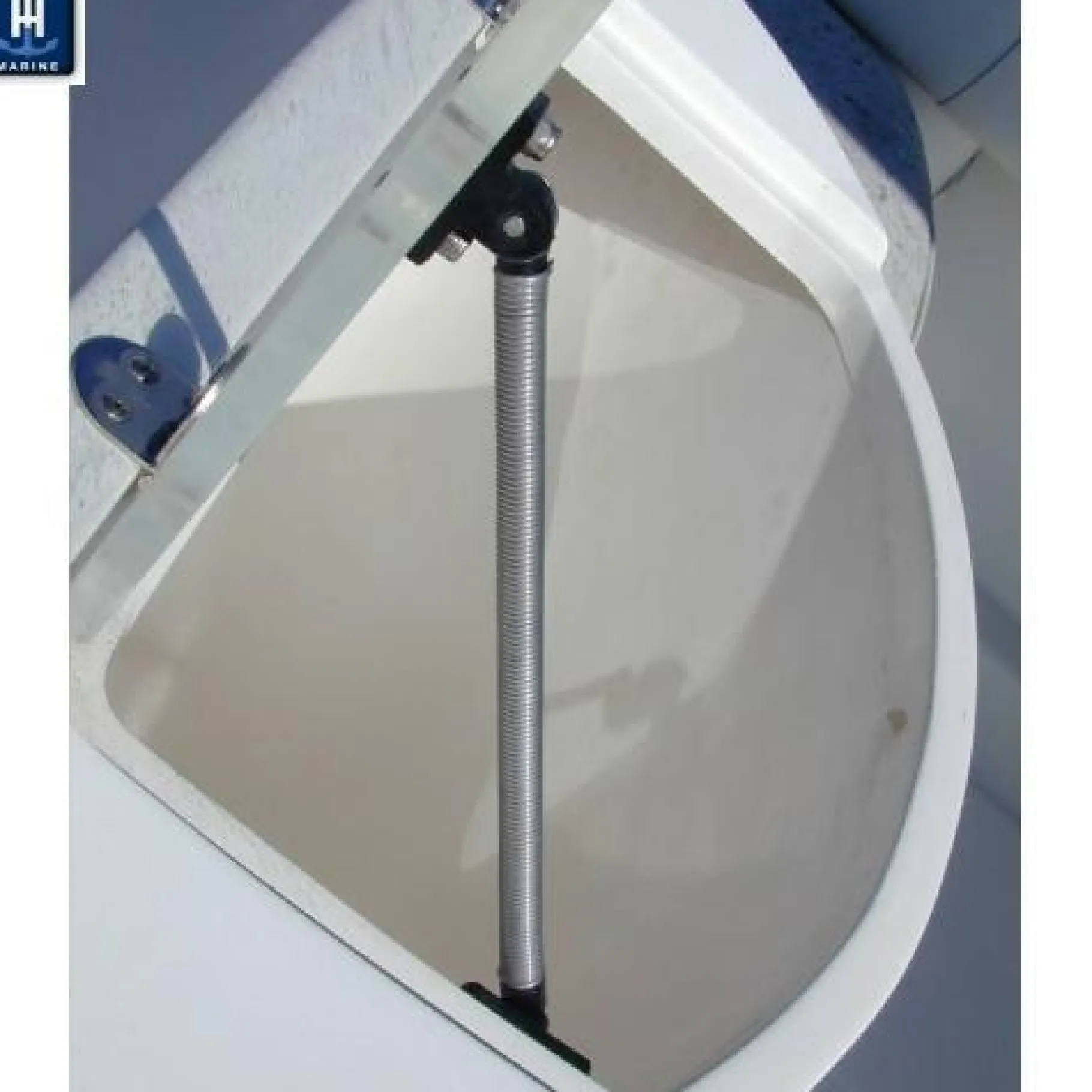

These lid, hatch or instrument cover supports feature a stainless steel spring that snaps straight to a support position when opened.

The stainless steel spring then supports the lid, hatch or cover in the open position.

When closing simply bend the spring which allows spring to fold and rotate at the mounting positions.

“C” versions have an internal stainless cable for applications where overextension of spring could occur.

OEM/Distributor	Product Name	Distributor Packaged
LS-2-DP	Molded Nylon Ends – 7/16″ diam. x 8-1/2″ L	LS-2-DP
LS-2C	LS-2 w/Restraint Cable – 7/16″ diam. x 8-1/2″ L	LS-2C-DP
LS-3	Offset Stainless ends – 7/16″ diam. x 8-1/2″ L	LS-3-DP
HS-1	Molded Nylon Ends – 5/8″ diam. x 12″ L	HS-1-DP

OEM – Bulk: 1/Box

Distributor Packaged: 12/Box

Specs

Part #	Size	Description	Supports

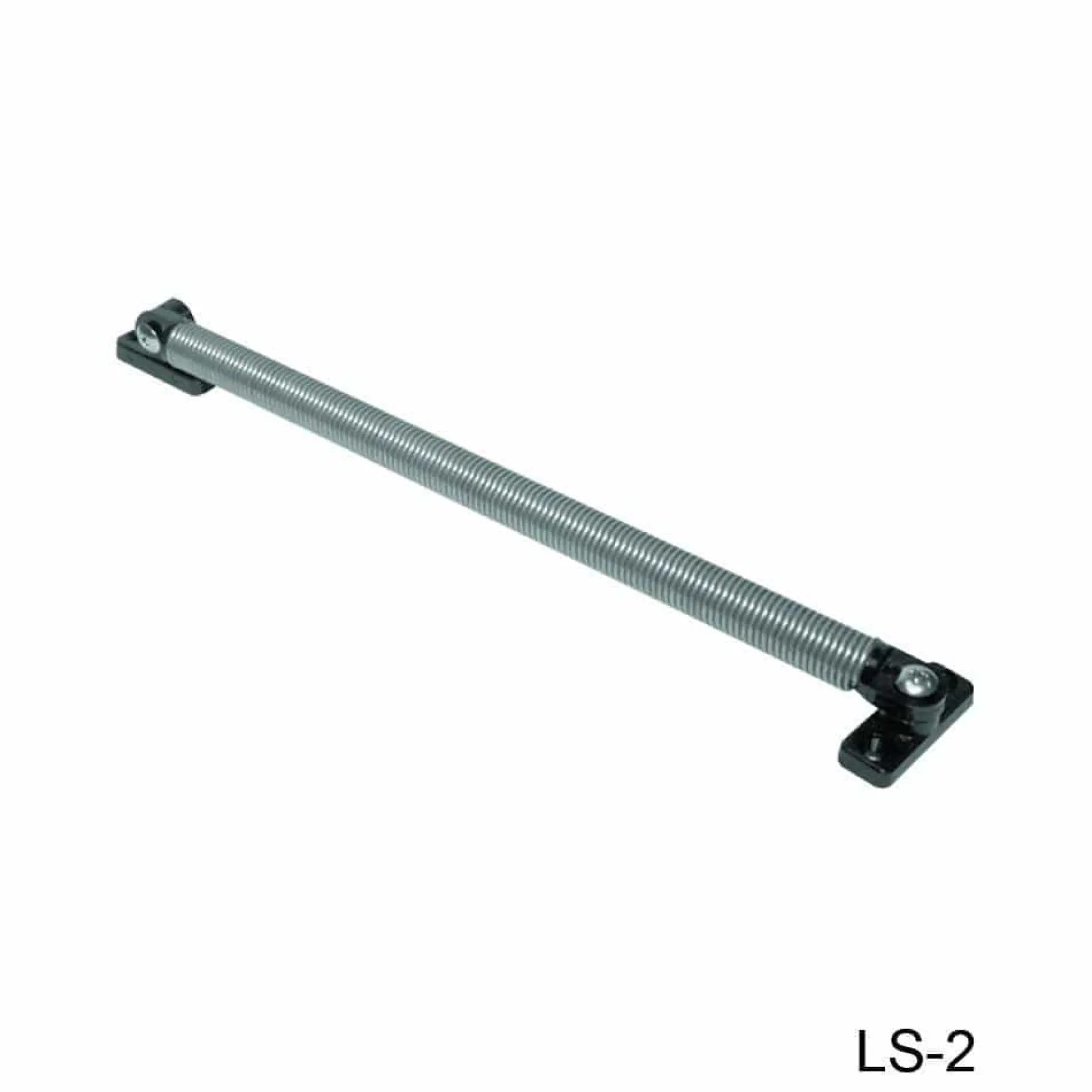

LS-2	7/16″ diam. x 8-1/2″ L	Molded Nylon Ends	10 lbs.

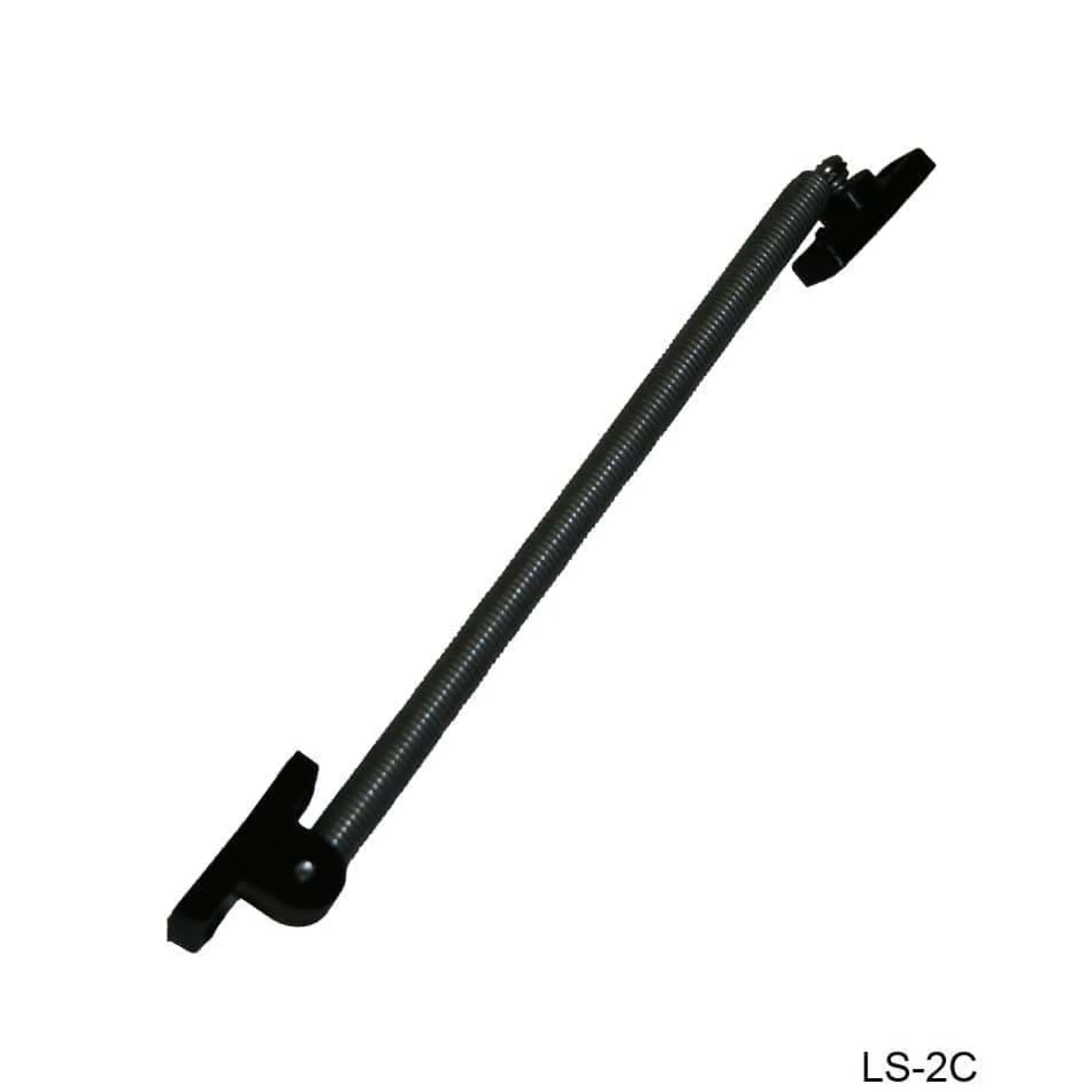

LS-2C	7/16″ diam. x 8-1/2″ L	LS-2 with Restraint Cable	10 lbs.

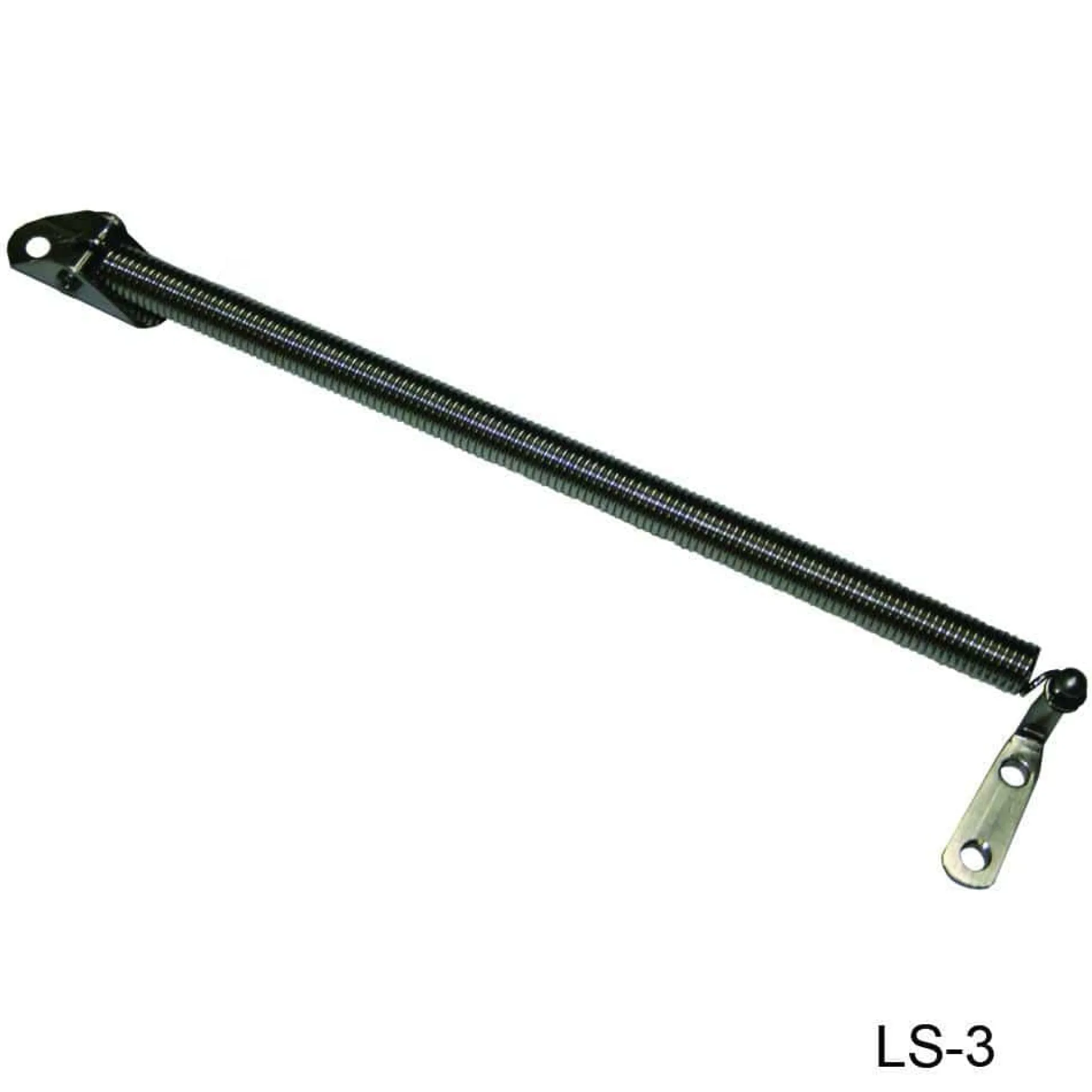

LS-3	7/16″ diam. x 8-1/2″ L	Offset Stainless ends	10 lbs.

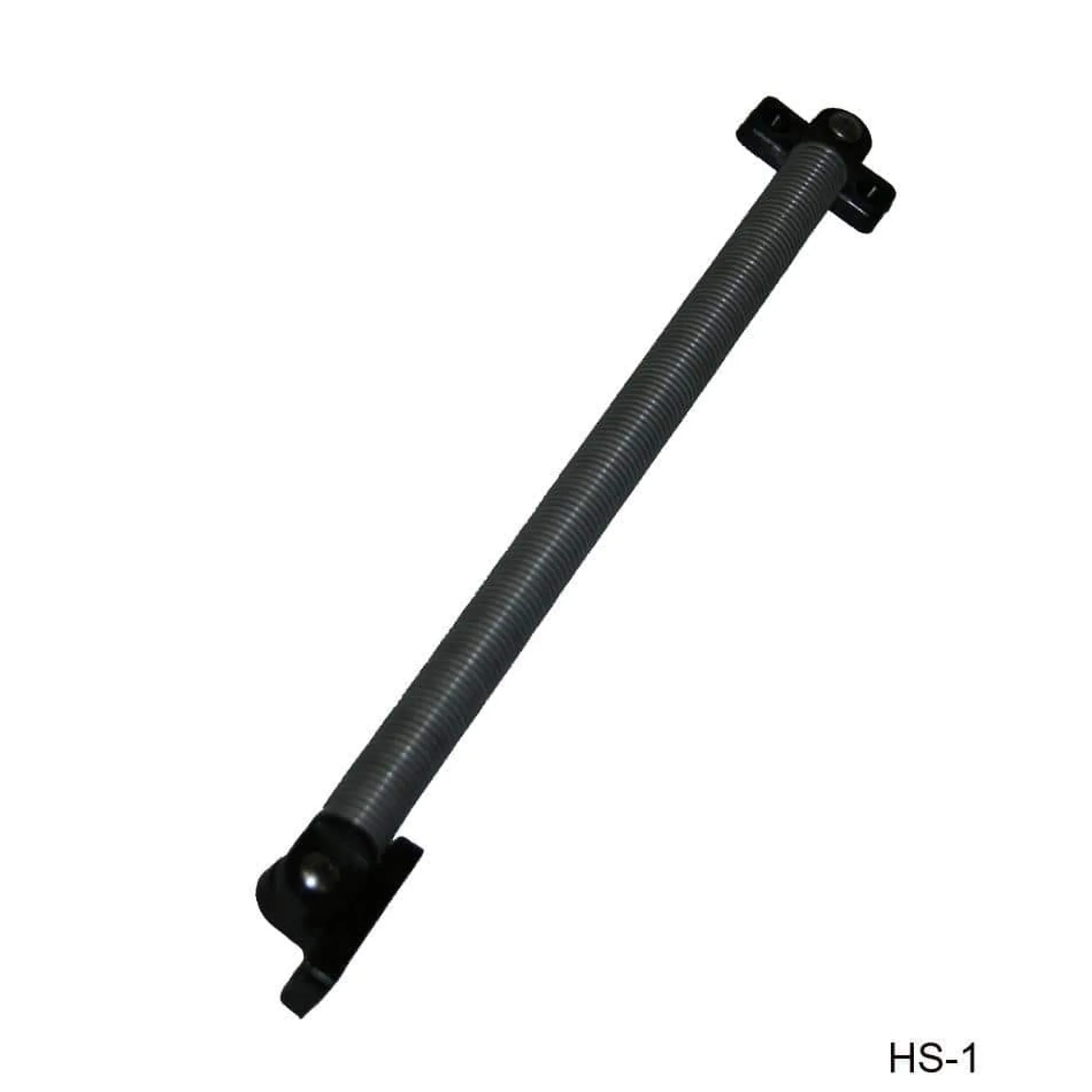

HS-1	5/8″ diam. x 12″ L	Molded Nylon Ends	20 lbs.

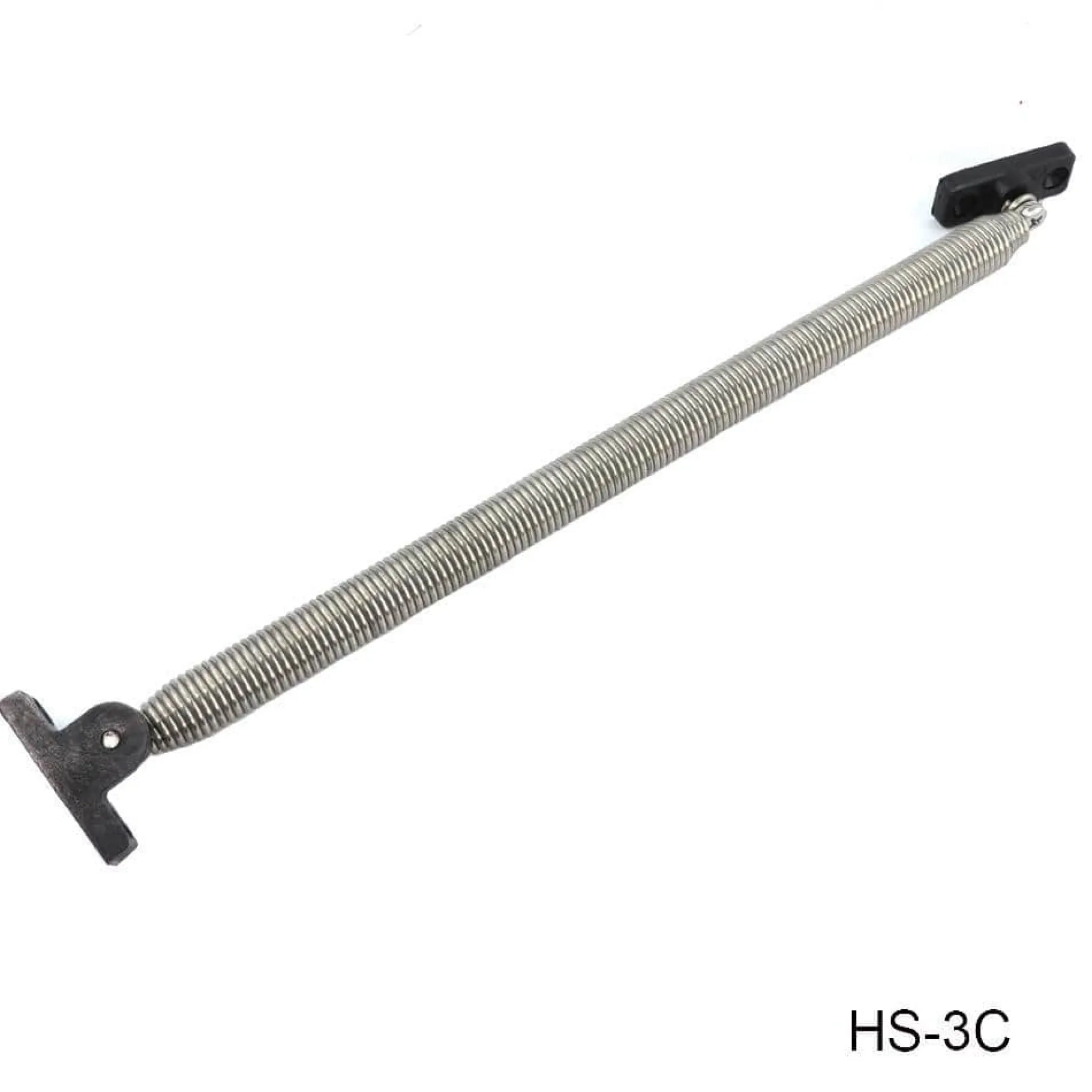

HS-3C	5/8″ diam. x 12″ L	HS-1C with Stronger Cable	20 lbs.	DISCONTINUED
