CMC Jack Plates & Trim Units-PT-35 Tilt and Trim for up to 35 HP

Features

• Rated for 35 hp power and smaller motors
• 5 1/2″ Set Back to Enhance Boat Stability and Performance
• 1/4″ 6061 T6 Extruded Aluminum Construction with Stainless Steel Fasteners
• Accommodates Clamp-on or Bolt-on Motors Without the Need of an Adapter
• Weighs Only 24 Pounds

Read CMC Marine’s Warranty Policy Here

Electric Hydraulic Tilt & Trim

You Get Power Tilt & Trim, Better Boat Handling, More Speed, Lower Fuel Consumption and No More Back Strain!

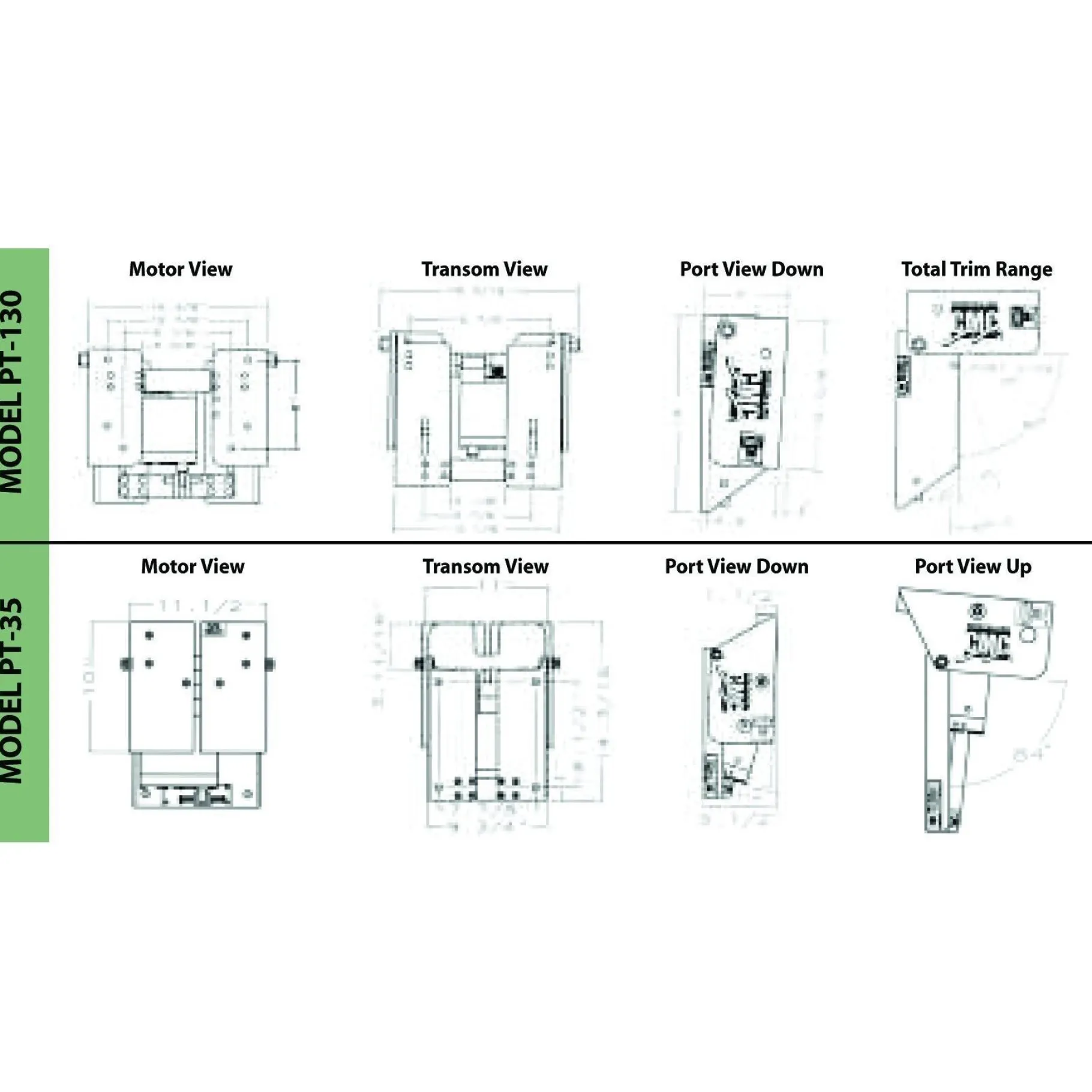

Note: The inside dimension of the motor mounting area of the PT-35 is 11 inches. Before ordering, please make sure that the maximum width of the clamp mounting feet and/or mounting bolts of the motor that must fit into this area does not exceed this 11 inch limit. Refer to the transom view drawings. Mounting bolts are not included with the PT-35.

Specs

• Power rating: up to 35 hp
• Set Back: 5 1/2″
• Trim and tilt: 84°
• Inside dimension of the motor mounting area: 11″
• Electric hydraulic actuator rating: 7853 lbs. of thrust
• Weight: 24 lbs
